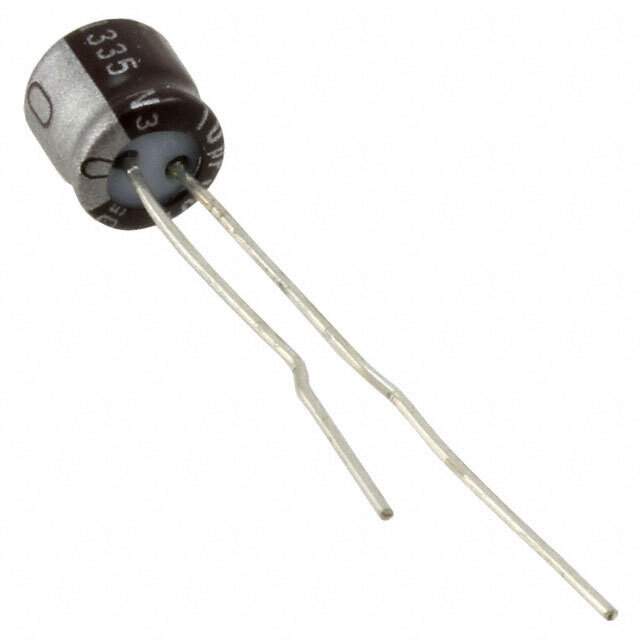

Same model may have multiple batches, images only for reference.

UMV1E100MFD1TP

Name: UMV1E100MFD1TP
Brand: Nichicon
SKU: 1340382
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UMV1E100MFD1TP
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 25V RADIAL / 10 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UMV
Package	Cut Tape (CT) Tape & Box (TB)
Product Status	Obsolete
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	23 mA @ 120 Hz
Ripple Current @ High Frequency	34.5 mA @ 10 kHz
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	2,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1340382-UMV1E100MFD1TP
Ultra Librarian 3D Model	Ultra Librarian UMV1E100MFD1TP CAD Model

Alternative Products

Description

The UMV series aluminum electrolytic capacitor is a general-purpose component designed for use in a variety of applications.

Capacitance: 10 μF
Voltage Rating: 25 V
Tolerance: ±20%
Ripple Current (Low Frequency): 23 mA
Ripple Current (High Frequency): 34.5 mA
ESR: Not Specified
Polarization: Polarized
Package: Radial, Can
Diameter: 0.197 inches (5.00 mm)
Height (Seated): 0.236 inches (6.00 mm)
Packaging: Cut Tape (CT), Tape & Box (TB)
Standard Package: 2,000
Lifetime: 5000 hours @ 105°C
Operating Temperature: 105°C
