Same model may have multiple batches, images only for reference.

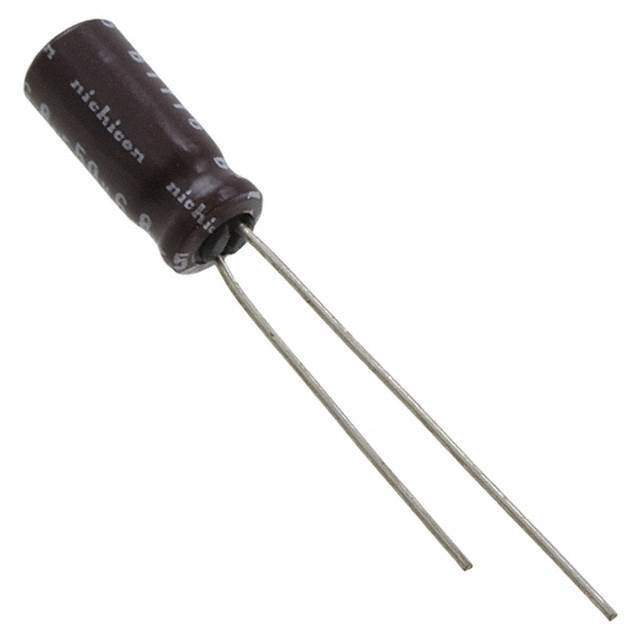

UPM1H010MDD Real Image
Same model may have multiple batches, images only for reference.

UPM1H010MDD

Part No UPM1H010MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1UF 20% 50V RADIAL  /  1 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPM
Package Bulk
Product Status Obsolete
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 18 mA @ 120 Hz
Ripple Current @ High Frequency 36 mA @ 10 kHz
Impedance 11 Ohms
Lead Spacing 0.079" (2.00mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names UPM1H010MDD-ND,493-15733
Standard Package 3,000
Win Source Part Number 966997-UPM1H010MDD
Ultra Librarian 3D Model Ultra Librarian UPM1H010MDD CAD Model

Description

The Nichicon UPM1H010MDD is a 1μF aluminum electrolytic capacitor with a rated voltage of 50V.

  • Capacitance: 1μF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Impedance: 11 Ohms
  • Height (Max): 0.492" (12.50mm)
  • Diameter: 0.197" (5.00mm)
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Lifetime: 2000 hours @ 105°C
  • Polarization: Polarized
  • Application: General Purpose
  • Ripple Current: 18 mA @ 120 Hz, 36 mA @ 10 kHz
  • Status: Obsolete (replaced by UPM1H010MDD1TD)
