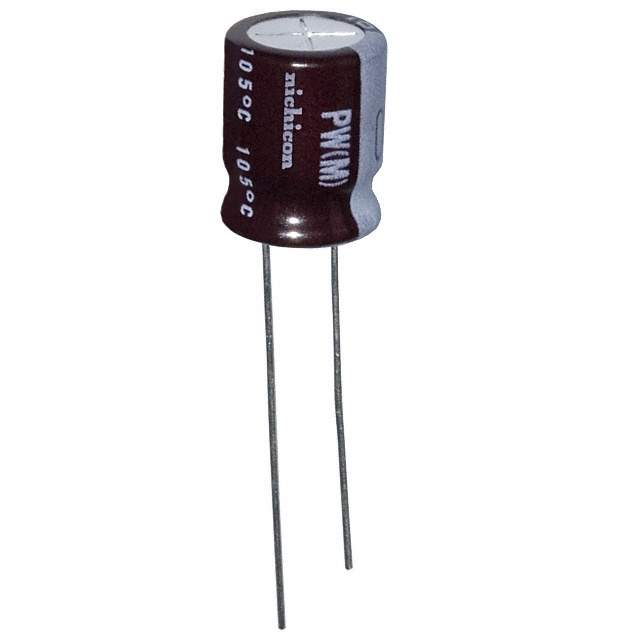

Same model may have multiple batches, images only for reference.

UPW1E331MPD

Name: UPW1E331MPD
Brand: Nichicon
SKU: 806830
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW1E331MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 25V RADIAL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Nichicon
Packaging	Bulk
Capacitance	330μF
Tolerance	±20%
Voltage - Rated	25V
Lifetime at Temp.	5000 Hrs at 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	Use For General
Ripple Current at Low Frequency	494mA at 120Hz
Ripple Current at High Frequency	760mA at 100kHz
Impedance	90 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Maximum)	0.492" (12.50mm)
Mounting Style	Through Hole
Manufacturer Package	Radial, Can
Manufacturer Pack Quantity	200
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	806830-UPW1E331MPD
Ultra Librarian 3D Model	Ultra Librarian UPW1E331MPD CAD Model

Alternative Products

Description

{"ProductId":745411,"FormattedDescription":"

The Nichicon UPW1E331MPD is a general-purpose capacitor manufactured by Nichicon.

Capacitance: 330µF
Voltage Rating: 25V
Manufacturer Package: Radial, Can
Mounting: Through Hole
Lead Spacing: 0.197" (5.00mm)
Polarization: Polar
Tolerance: ±20%
Impedance: 90 mOhms
Supply and Demand Status: Balanced
Win Source Part Number: 806830
