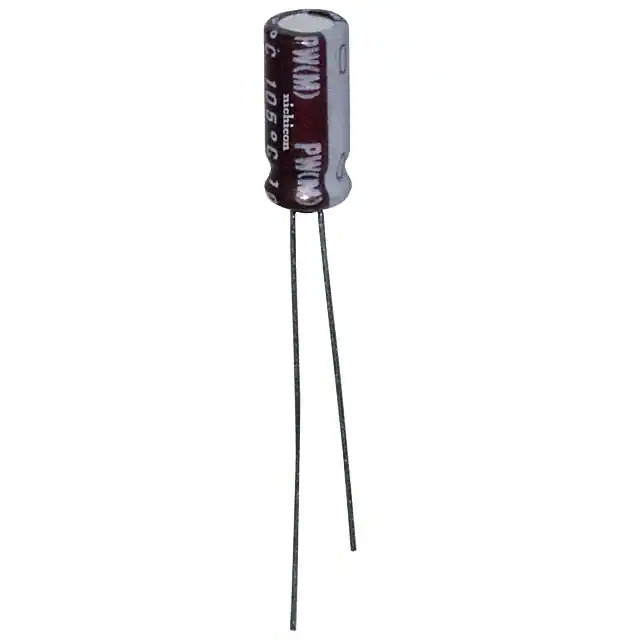

Same model may have multiple batches, images only for reference.
UPW1E470MDD Nichicon
Same model may have multiple batches, images only for reference.

UPW1E470MDD

Part No UPW1E470MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 25V RADIAL / 47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet
UPW1E470MDD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Obsolete
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 54 mA @ 120 Hz
Ripple Current @ High Frequency 180 mA @ 100 kHz
Impedance 600 mOhms
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357648-UPW1E470MDD
Ultra Librarian 3D Model Ultra Librarian UPW1E470MDD CAD Model

Description

The UPW1E470MDD is a radial, can type aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 47 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Application: General Purpose
  • Ripple Current (Low Frequency): 54 mA @ 120 Hz
  • Ripple Current (High Frequency): 180 mA @ 100 kHz
  • Lead Spacing: 2.00mm
  • Diameter: 5.00mm
  • Seated Height (Max): 11.00mm
  • Lifetime: 2000 hours @ 105°C
  • Mounting Type: Through-Hole
  • Product Status: Obsolete
  • REACH: Unaffected
  • ECCN: EAR99
  • Impedance: 600 mOhms
  • Polarization: Polarized
