Same model may have multiple batches, images only for reference.

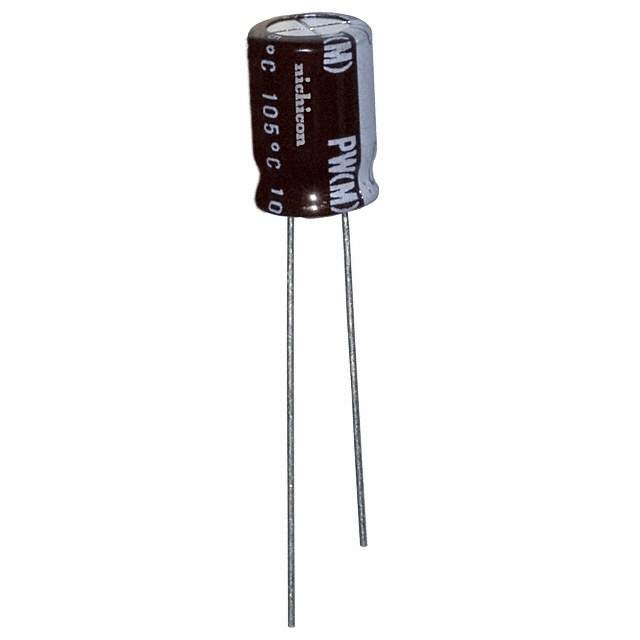

UPW1H101MPD Real Image
Same model may have multiple batches, images only for reference.

UPW1H101MPD

Part No UPW1H101MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V RADIAL  /  100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 315.25 mA @ 120 Hz
Ripple Current @ High Frequency 485 mA @ 100 kHz
Impedance 234 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names Q4306998A,493-1899
Standard Package 3,000
Win Source Part Number 975020-UPW1H101MPD
Ultra Librarian 3D Model Ultra Librarian UPW1H101MPD CAD Model

Description

The Nichicon UPW series aluminum electrolytic capacitor is a general-purpose capacitor with a capacitance of 100μF and a voltage rating of 50V.

  • Series: UPW
  • Capacitance: 100μF
  • Voltage Rating: 50V
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Tolerance: ±20%
  • Impedance: 234mOhms
  • Ripple Current (Low Frequency): 315.25mA
  • Ripple Current (High Frequency): 485mA
  • Seated Height: 0.453 inches (11.50mm)
  • Diameter: 0.315 inches (8.00mm)
  • Lifetime: 3000 hours @ 105°C
  • Polarized: Yes
