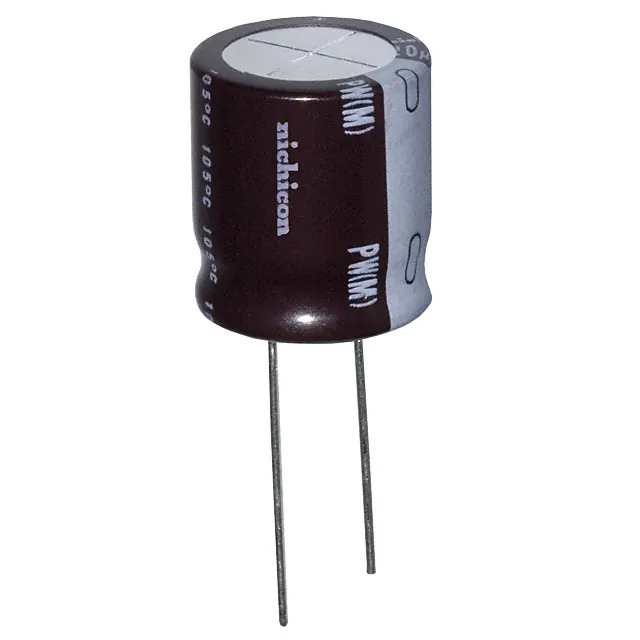

UPW1J681MHD3 Nichicon
Same model may have multiple batches, images only for reference.

UPW1J681MHD3

Part No UPW1J681MHD3
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 63V RADIAL / 680 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Datasheet
UPW1J681MHD3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.718 A @ 120 Hz
Ripple Current @ High Frequency 2.29 A @ 100 kHz
Impedance 55 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.787" (20.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358142-UPW1J681MHD3
Ultra Librarian 3D Model Ultra Librarian UPW1J681MHD3 CAD Model

Description

The UPW series aluminum electrolytic capacitor from Nichicon is a reliable and high-quality component designed for general-purpose applications.

  • Capacitance: 680 μF
  • Voltage - Rated: 63 V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 1.718 A @ 120 Hz
  • Ripple Current @ High Frequency: 2.29 A @ 100 kHz
  • Lifetime @ Temp.: 8000 Hrs @ 105°C
  • Size / Dimension: 0.709" Dia (18.00mm)
  • Height - Seated (Max): 0.787" (20.00mm)
  • Mounting Type: Through Hole
  • Operating Temperature: -55°C ~ 105°C
  • Polarization: Polar
  • Packaging: Bulk
  • For new designs: No
  • Polarization Marking: Yes
  • REACH: Unaffected
  • ECCN: EAR99
