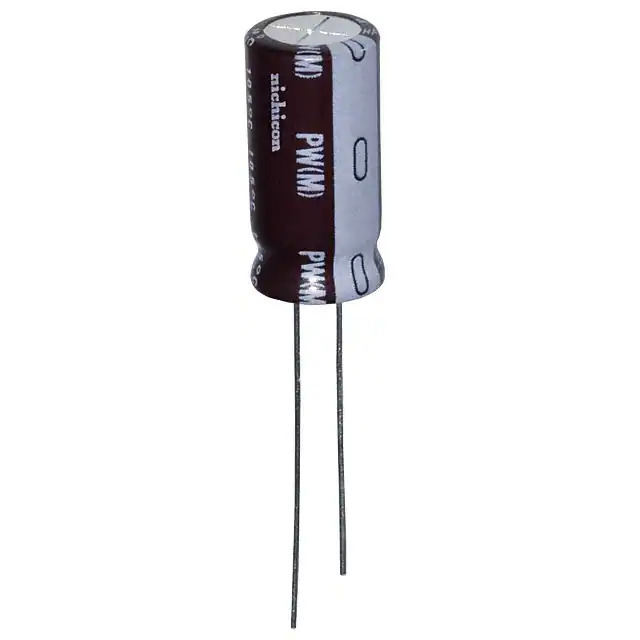

Same model may have multiple batches, images only for reference.

UPW1V331MPD

Name: UPW1V331MPD
Brand: Nichicon
SKU: 1357901
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UPW1V331MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 35V RADIAL / 330 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UPW1V331MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Not For New Designs
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	682.5 mA @ 120 Hz
Ripple Current @ High Frequency	1.05 A @ 100 kHz
Impedance	68 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.630" (16.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357901-UPW1V331MPD
Ultra Librarian 3D Model	Ultra Librarian UPW1V331MPD CAD Model

Alternative Products

Description

The UPW1V331MPD is a radial, can-type aluminum electrolytic capacitor from Nichicon.

Capacitance: 330µF
Voltage Rating: 35V
Application: General Purpose
Temperature Range: -55°C to 105°C
Lifetime: 5000 hours @ 105°C
Size: 0.394" diameter, 0.630" height
ESR: Low
Ripple Current: 682.5mA @ Low Frequency (120Hz), 1.05A @ High Frequency (100kHz)
Mounting Type: Through-Hole
Status: Not for New Designs
MSL Level: Not Applicable
Polarization: Polarized
Tolerance: ±20%
AEC-Q200: Rated
