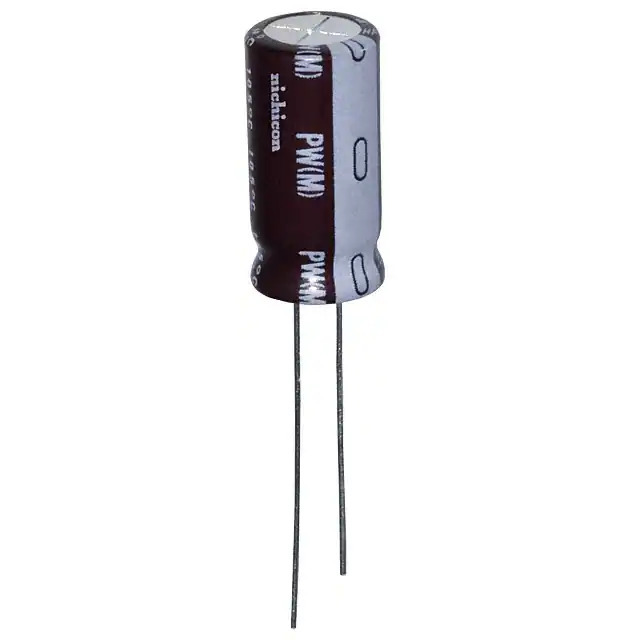

Same model may have multiple batches, images only for reference.
UPW2A470MPD6 Nichicon
Same model may have multiple batches, images only for reference.

UPW2A470MPD6

Part No UPW2A470MPD6
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 100V RADIAL / 47 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet
UPW2A470MPD6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 126 mA @ 120 Hz
Ripple Current @ High Frequency 420 mA @ 100 kHz
Impedance 370 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.787" (20.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357975-UPW2A470MPD6
Ultra Librarian 3D Model Ultra Librarian UPW2A470MPD6 CAD Model

Description

The UPW series aluminum electrolytic capacitor by Nichicon is a reliable component designed for general-purpose applications.

  • Capacitance: 47 μF
  • Voltage Rating: 100 V
  • Operating Temperature: -55°C to 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 126 mA @ 120 Hz
  • Ripple Current (High Frequency): 420 mA @ 100 kHz
  • Size: 0.315" diameter (8.00mm)
  • Seated Height: 0.787" (20.00mm)
  • Mounting: Through-hole
  • Lead Spacing: 0.138" (3.50mm)
  • Lifetime: 3000 hours @ 105°C
