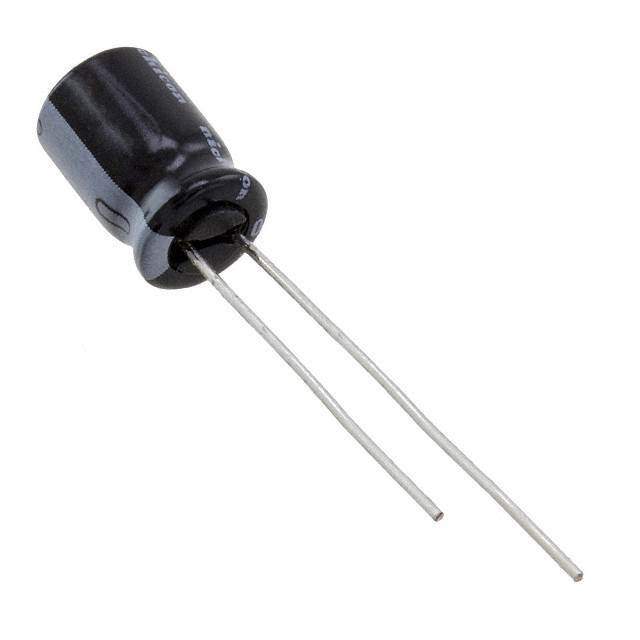

Same model may have multiple batches, images only for reference.

URS1E101MDD1TD

Name: URS1E101MDD1TD
Brand: Nichicon
SKU: 1349788
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	URS1E101MDD1TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 25V RADIAL / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Datasheet	URS1E101MDD1TD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	URS
Package	Cut Tape (CT) Tape & Box (TB)
Product Status	Obsolete
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	180 mA @ 120 Hz
Ripple Current @ High Frequency	270 mA @ 10 kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.413" (10.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	2,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1349788-URS1E101MDD1TD
Ultra Librarian 3D Model	Ultra Librarian URS1E101MDD1TD CAD Model

Alternative Products

Description

The Nichicon URS1E101MDD1TD is an aluminum electrolytic capacitor that has a capacitance of 100μF and a voltage rating of 25V with a tolerance of ±20%.

Capacitance: 100μF
Tolerance: ±20%
Voltage - Rated: 25V
Size / Dimension: 0.248" (6.30mm)
Height - Seated (Max): 0.413" (10.50mm)
Mounting Type: Through Hole
Package / Case: Radial, Can
Polarization: Polarized
Ripple Current @ Low Frequency: 180 mA @ 120 Hz
Ripple Current @ High Frequency: 270 mA @ 10 kHz
Lifetime @ Temp.: 2000 Hrs @ 85°C
Status: Obsolete
