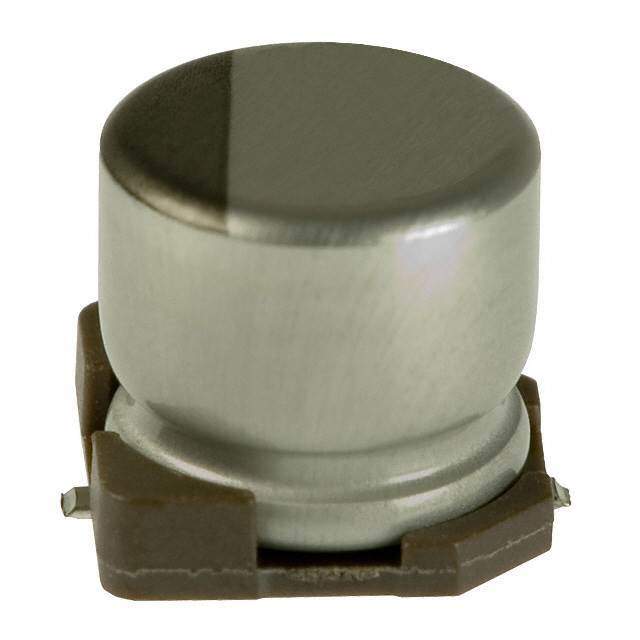

Same model may have multiple batches, images only for reference.

UUD1V470MCL1GS

Name: UUD1V470MCL1GS
Brand: Nichicon
SKU: 1029438
Availability: InStock
Rating: 4.85 (102 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UUD1V470MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 35V SMD / 47 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUD
Package	Tape & Reel
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	115 mA @ 120 Hz
Ripple Current @ High Frequency	230 mA @ 100 kHz
Impedance	440 mOhms
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	Q3374557B,493-2287-2,493-2287-1,493-2287-6
Standard Package	1,000
Win Source Part Number	1029438-UUD1V470MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UUD1V470MCL1GS CAD Model

Alternative Products

Description

The UUD1V470MCL1GS is a radial, can surface mount aluminum electrolytic capacitor from Nichicon. Bold the product name (e.g., UUD1V470MCL1GS) and manufacturer (e.g., Nichicon).

Capacitance: 47 µF
Voltage Rating: 35 V
Tolerance: ±20%
Impedance: 440 mOhms
Polarization: Polar
AEC-Q200: Yes
Application: Automotive
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Operating Temperature Range: -55°C to 105°C
Lifetime: 2000 Hrs @ 105°C
Packaging: Tape and reel
Standard Package: 1,000
Equivalent Series Resistance (ESR): Yes
Series: UUD
