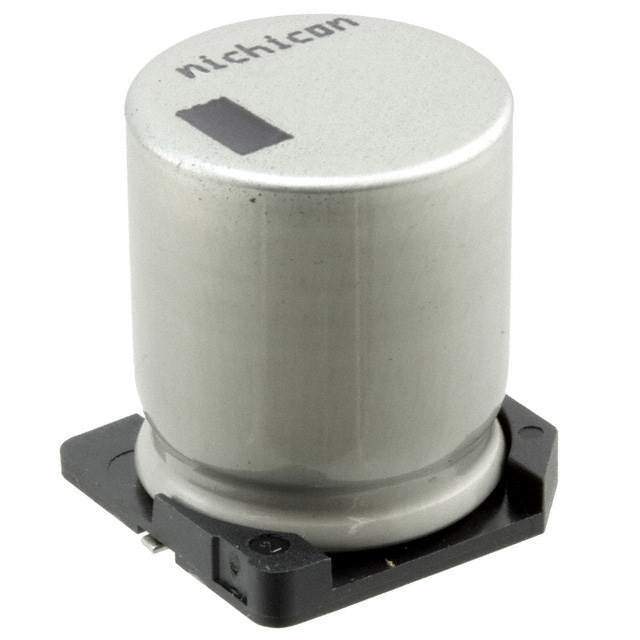

Same model may have multiple batches, images only for reference.

UUG1C222MNQ6MS

Name: UUG1C222MNQ6MS
Brand: Nichicon
SKU: 1350464
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UUG1C222MNQ6MS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 16V SMD / 2200 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet	UUG1C222MNQ6MS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUG
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.15 A @ 120 Hz
Ripple Current @ High Frequency	1.3225 A @ 10 kHz
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.886" (22.50mm)
Surface Mount Land Size	0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	125
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1350464-UUG1C222MNQ6MS
Ultra Librarian 3D Model	Ultra Librarian UUG1C222MNQ6MS CAD Model

Alternative Products

Description

The UUG series aluminum electrolytic capacitor is a reliable and high-quality electronic component that can be used in a variety of applications.

Win Source Part Number: 1350464-UUG1C222MNQ6MS
Capacitance: 2200 µF
Voltage Rated: 16 V
Tolerance: ±20%
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Size/Dimension: 0.492" Dia (12.50mm)
Height: 0.886" (22.50mm) Seated
Operating Temperature: -40°C to 85°C
Lifetime: 2000 Hrs @ 85°C
MSL Level: 1 (Unlimited)
REACH Status: REACH Unaffected
HTSUS: 8532.22.0020
Manufacturer: Nichicon
Status: Not for New Designs
