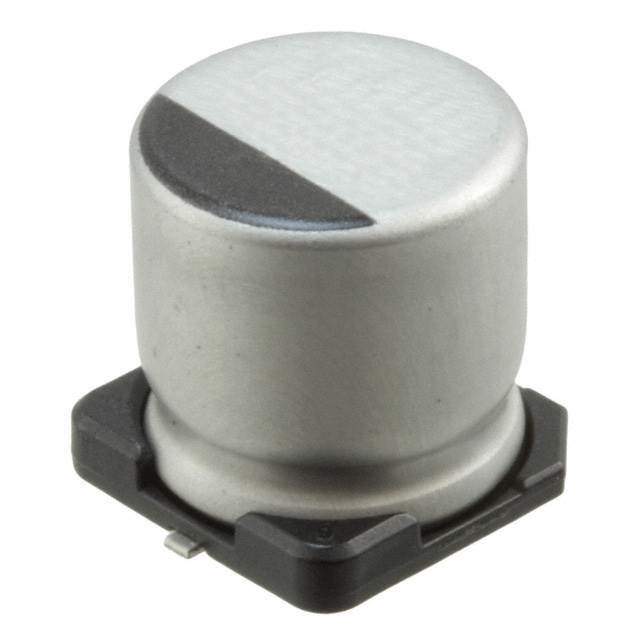

UUX1H101MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUX1H101MNL1GS

Part No UUX1H101MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UUX1H101MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUX
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 310 mA @ 120 Hz
Ripple Current @ High Frequency 403 mA @ 10 kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-6269-2,UUX1H101MNL1GS-ND,493-6269-1,493-6269-6
Standard Package 500
Win Source Part Number 1004034-UUX1H101MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUX1H101MNL1GS CAD Model

Description

This is a UUX series aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 100 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Package/Case: Radial, Can - SMD
  • Height: 0.413" (10.50mm)
  • Dimension: 0.394" Dia (10.00mm)
  • Mounting Type: SMD (SMT)
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Lifetime: 2000 Hrs @ 105°C
  • Ripple Current: 310 mA @ 120 Hz (low frequency) and 403 mA @ 10 kHz (high frequency)
