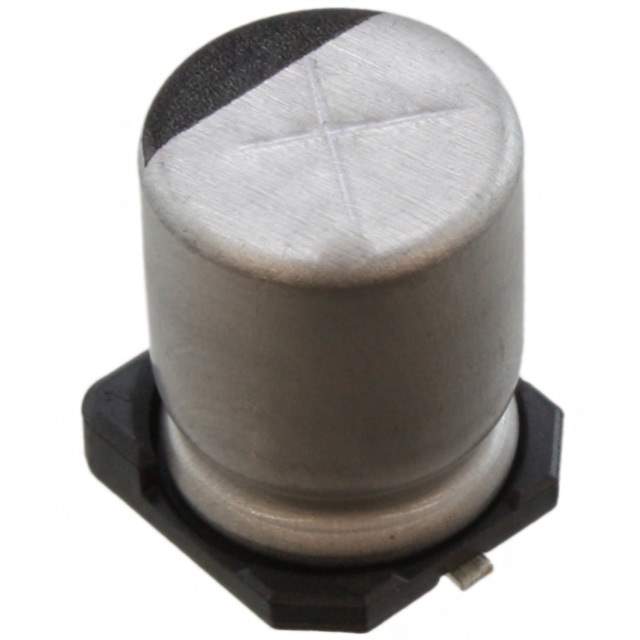

UUX1J220MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUX1J220MNL1GS

Part No UUX1J220MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 63V SMD / 22 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UUX1J220MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUX
Package Tape & Reel
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 108 mA @ 120 Hz
Ripple Current @ High Frequency 180.36 mA @ 10 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338944-UUX1J220MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUX1J220MNL1GS CAD Model

Description

The 1338944-UUX1J220MNL1GS is a 22μF, 63V, ±20% tolerance aluminum electrolytic capacitor from Nichicon.

  • Mfr: Nichicon
  • Capacitance: 22μF
  • Voltage: 63V
  • Tolerance: ±20%
  • Type: General Purpose
  • Package: Radial, Can - SMD
  • Series: UUX
  • Lifetime: 2000 Hrs @ 105°C
  • Polarization: Polar
  • Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Ripple Current @ Low Frequency: 108 mA @ 120 Hz
  • Ripple Current @ High Frequency: 180.36 mA @ 10 kHz
  • ESR: -
