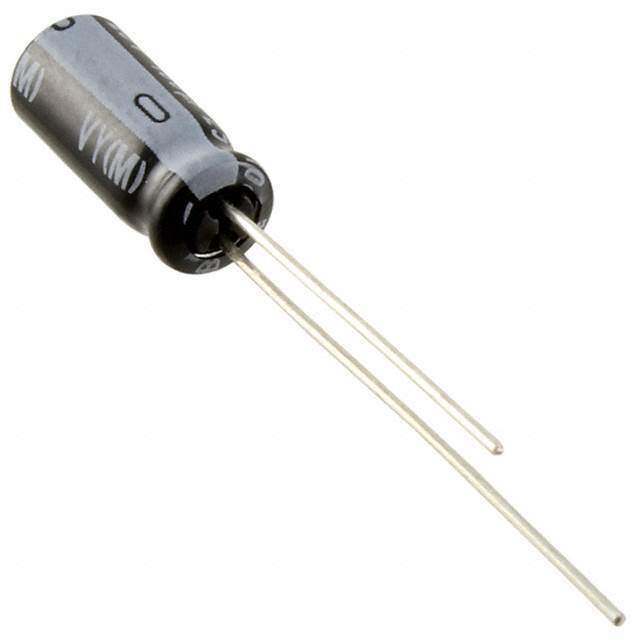

UVY2A0R1MDD1TD Real Image
Same model may have multiple batches, images only for reference.

UVY2A0R1MDD1TD

Part No UVY2A0R1MDD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 0.1UF 20% 100V RADIAL  /  0.1 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVY
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 0.1 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.5 mA @ 120 Hz
Ripple Current @ High Frequency 3 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-12946-3,493-12946-1
Standard Package 2,000
Win Source Part Number 1159362-UVY2A0R1MDD1TD
Ultra Librarian 3D Model Ultra Librarian UVY2A0R1MDD1TD CAD Model

Description

The Nichicon UVY2A0R1MDD1TD is a through-hole aluminum electrolytic capacitor with a capacitance of 0.1 µF and a voltage rating of 100 V.

  • Capacitance: 0.1 µF
  • Voltage Rating: 100 V
  • Tolerance: ±20%
  • Ripple Current: 1.5 mA @ 120 Hz and 3 mA @ 10 kHz
  • Polarization: Polarized
  • Package: Radial, Can
  • Diameter: 0.197" (5.00mm)
  • Height: 0.492" (12.50mm)
  • Manufacturer: Nichicon
  • Product Status: Not for new designs
  • ECCN: EAR99
  • REACH: Unaffected
  • Ripple Current @ Low Frequency: 1.5 mA @ 120 Hz
  • Ripple Current @ High Frequency: 3 mA @ 10 kHz
