Same model may have multiple batches, images only for reference.

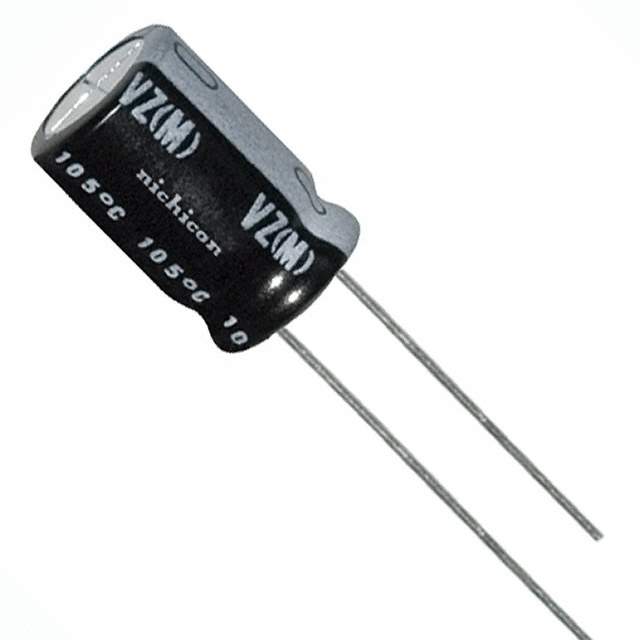

UVZ2W2R2MPD Real Image
Same model may have multiple batches, images only for reference.

UVZ2W2R2MPD

Part No UVZ2W2R2MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2.2UF 20% 450V RADIAL / Cap Aluminum Lytic 2.2uF 450V 20% (10 X 12.5mm) Radial 5mm 23mA 1000h 105°C Bulk
Datasheet
UVZ2W2R2MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series UVZ
Packaging Bulk
Capacitance 2.2μF
Tolerance ±20%
Voltage Rating DC 450V
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -25°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 23mA @ 120Hz
Ripple Current - High Frequency 36.8mA @ 10kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.492" (12.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777884-UVZ2W2R2MPD
Popularity Medium
Supply and Demand Status Limited
Family Name UVZ
Introduction Date September 12, 2003
ECCN EAR99
Country of Origin China, Japan, Malaysia
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian UVZ2W2R2MPD CAD Model

Description

The Nichicon UVZ series radial, polarized capacitors are designed to provide a capacitance of 2.2μF and a tolerance of ±20%.

  • Capacitance: 2.2μF
  • Tolerance: ±20%
  • Voltage Rating DC: 450V
  • Applications: General
  • Package Type: Radial, Can
  • Lead Spacing: 0.197" (5.00mm)
  • Diameter: 0.394" (10.00mm)
  • Ripple Current: 23mA @ 120Hz
  • Ripple Current: 36.8mA @ 10kHz
  • Height: 0.492" (12.50mm)
  • Lifetime: 1000 Hrs @ 105°C
  • Packaging: Bulk
  • Halogen Free: Yes
  • Supply and Demand Status: Limited
  • Country of Origin: China, Japan, and Malaysia
  • Estimated EOL Date: 2027
