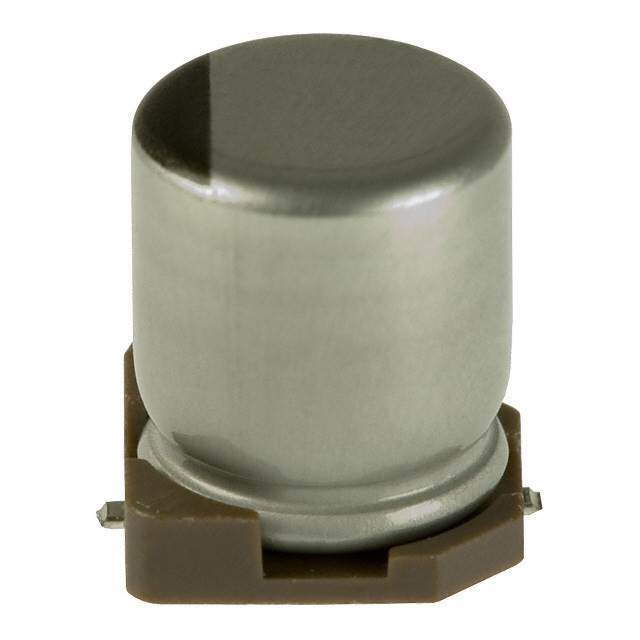

Same model may have multiple batches, images only for reference.

UWT0J331MCL1GS

Name: UWT0J331MCL1GS
Brand: Nichicon
SKU: 1005434
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWT0J331MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 6.3V SMD / 330 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWT
Package	Tape & Reel
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	6.3 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	105 mA @ 120 Hz
Ripple Current @ High Frequency	157.5 mA @ 10 kHz
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.303" (7.70mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-2157-6,Q5937320A,493-2157-2,493-2157-1
Standard Package	900
Win Source Part Number	1005434-UWT0J331MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UWT0J331MCL1GS CAD Model

Alternative Products

Description

The Nichicon UWT series 1005434-UWT0J331MCL1GS is a 330 µF, 6.3 V, ±20% tolerance aluminum electrolytic capacitor used in general purpose applications.

Series: UWT
Capacitance: 330 µF
Voltage: 6.3 V
Tolerance: ±20%
Application: General purpose
Package: Radial, can - SMD
Mounting: Surface mount
Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Ripple Current (Low Frequency): 105 mA @ 120 Hz
Ripple Current (High Frequency): 157.5 mA @ 10 kHz
Lifetime: 1000 Hrs @ 105°C
Polarized: Yes
