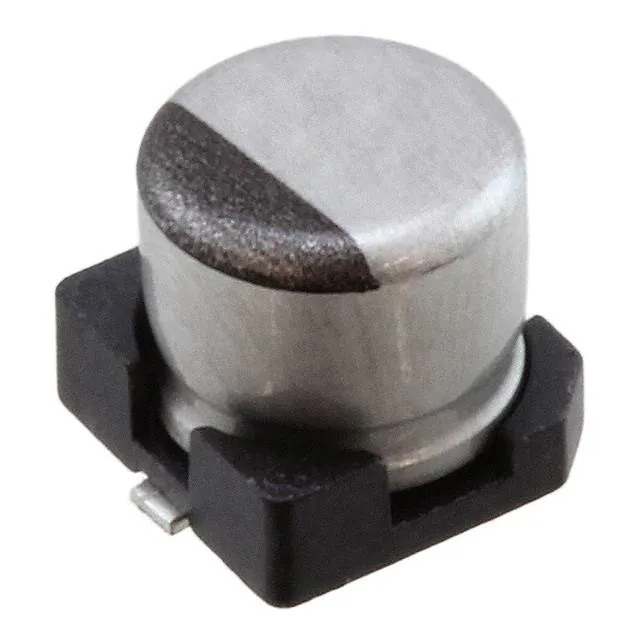

Same model may have multiple batches, images only for reference.
UZG1C100MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UZG1C100MCL1GB

Part No UZG1C100MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 16V SMD / 10 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Datasheet
UZG1C100MCL1GB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UZG
Package Tape & Reel
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization -
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 16 mA @ 120 Hz
Ripple Current @ High Frequency 24 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.156" (3.95mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360172-UZG1C100MCL1GB
Ultra Librarian 3D Model Ultra Librarian UZG1C100MCL1GB CAD Model

Description

The UZG1C100MCL1GB is a high-quality aluminum electrolytic capacitor manufactured by Nichicon.

  • Product: Aluminum Electrolytic Capacitor
  • Manufacturer: Nichicon
  • Series: UZG
  • Capacitance: 10 μF
  • Voltage Rating: 16 V
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Lifetime: 1000 hours @ 105°C
  • Ripple Current (Low Frequency): 16 mA @ 120 Hz
  • Ripple Current (High Frequency): 24 mA @ 10 kHz
  • Status: Active
