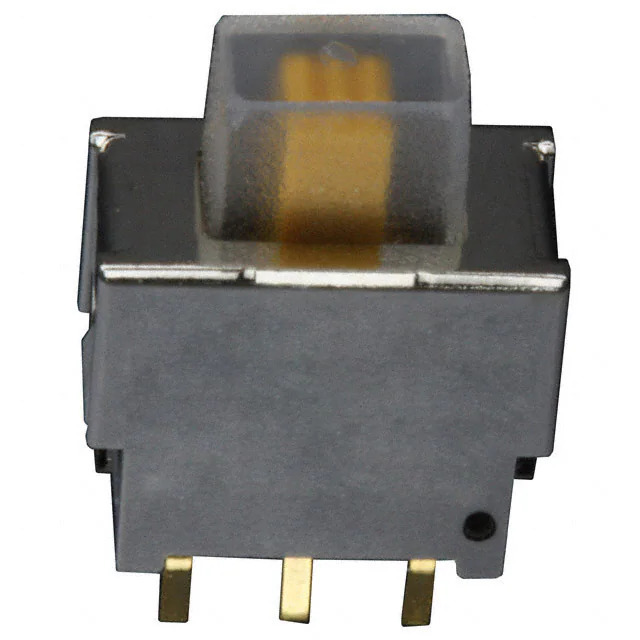

ASE1E-2M-10-Z Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

ASE1E-2M-10-Z

Part No ASE1E-2M-10-Z
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE SPDT 50MA 60V
Datasheet
ASE1E-2M-10-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Components Corporation
Series ASE
Package Tray
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-Off-On
Current Rating (Amps) 50mA (AC/DC)
Voltage Rating - AC 60 V
Voltage Rating - DC 60 V
Actuator Type Standard
Actuator Length 2.80mm
Contact Material -
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features Washable
Temperature Range - Operating -20°C ~ 85°C
Actuator Material -
Switch Travel 2.20mm
Mechanical Life -
Electrical Life 10,000 Cycles
Operating Force 70 ~ 500gf
Base Product Number ASE1E-2M
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376300-ASE1E-2M-10-Z
Ultra Librarian 3D Model Ultra Librarian ASE1E-2M-10-Z CAD Model

Description

The Nidec Components Corporation ASE1E-2M is a through-hole slide switch with a standard actuator type.

  • Current Rating (AC/DC): 50mA
  • Voltage Rating: 60V AC/DC
  • Switch Function: On-Off-On
  • Circuit: SPDT
  • Washable: Yes
  • Contact Finish: Gold
  • Operating Force: 70 ~ 500gf
  • Switch Travel: 2.20mm
  • Temperature Range: -20°C to 85°C
  • Product Status: Active
  • Series: ASE
