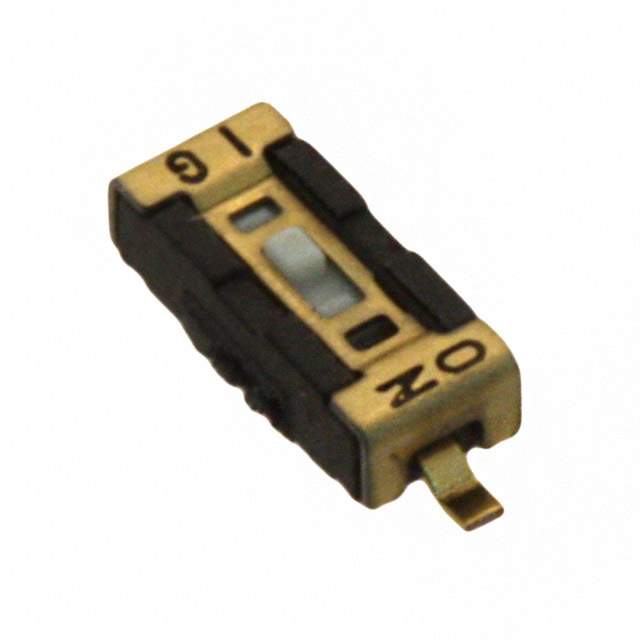

Same model may have multiple batches, images only for reference.

CVS-01TB

Name: CVS-01TB
Brand: Nidec Copal Electronics
SKU: 1233686
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CVS-01TB
Manufacturer	Nidec Copal Electronics
Catalog	DIP Switches
Description	SWITCH SLIDE DIP SPST 100MA 6V / Dip Switch SPST 1 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC
Datasheet	CVS-01TB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>DIP Switches
Mfr	Nidec Copal Electronics
Series	CVS
Package	Tape & Reel
Circuit	SPST
Number of Positions	1
Current Rating (Amps)	100mA
Voltage Rating	6VDC
Actuator Type	Slide (Standard)
Actuator Level	Raised
Contact Material	Stainless Steel
Contact Finish	Gold
Height Above Board	0.057" (1.45mm)
Mounting	SMD (SMT)
Termination Style	Gull Wing
Pitch	0.039" (1.00mm)
Washable	No
Temperature Range - Operating	-40°C ~ 85°C
Body Material	Polyphenylene Sulfide (PPS)
Length	0.079" (2.00mm)
Electrical Life	1,000 Cycles
Base Product Number	CVS-01T
Other Names	CVS01TB,563-1192-1,563-1192-2,563-1192-6
Standard Package	2,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065
Win Source Part Number	1233686-CVS-01TB
Ultra Librarian 3D Model	Ultra Librarian CVS-01TB CAD Model

Alternative Products

Description

The CVS-01TB is a DIP switch from Nidec Copal Electronics that is designed to provide a high level of performance.

Manufacturer: Nidec Copal Electronics
Circuit: SPST
Actuator Level: Raised
Contact Finish: Gold
Voltage: 6VDC
Current: 100mA
