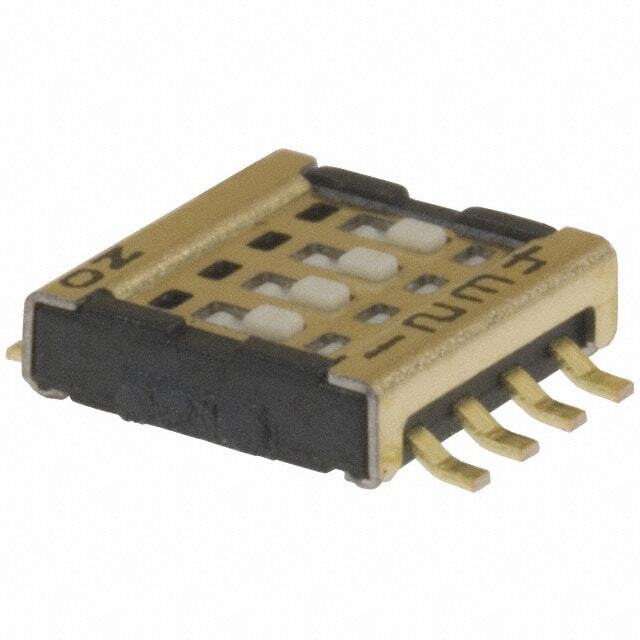

Same model may have multiple batches, images only for reference.

CVS-04TB-1

Name: CVS-04TB-1
Brand: Nidec Copal Electronics
SKU: 867465
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CVS-04TB-1
Manufacturer	Nidec Copal Electronics
Catalog	DIP Switches
Description	SWITCH SLIDE DIP SPST 100MA 6V / Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC
Datasheet	CVS-04TB-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - DIP Switches
Mfr	Nidec Copal Electronics
Series	CVS
Package	Tape & Reel
Product Status	Active
Circuit	SPST
Number of Positions	4
Current Rating (Amps)	100mA
Voltage Rating	6VDC
Actuator Type	Slide (Standard)
Actuator Level	Raised
Contact Material	Stainless Steel
Contact Finish	Gold
Height Above Board	0.057" (1.45mm)
Mounting Type	Surface Mount
Termination Style	Gull Wing
Pitch	0.039" (1.00mm)
Washable	No
Temperature Range - Operating	-40°C ~ 85°C
Body Material	Polyphenylene Sulfide (PPS)
Length	0.197" (5.00mm)
Electrical Life	1,000 Cycles
Base Product Number	CVS-04T
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065
Win Source Part Number	867465-CVS-04TB-1
Ultra Librarian 3D Model	Ultra Librarian CVS-04TB-1 CAD Model

Alternative Products

Description

The CVS DIP Switch is a compact and versatile component used in various electronic devices and circuits manufactured by Nidec Copal Electronics.

Manufacturer: Nidec Copal Electronics
Series: CVS
Number of Positions: 4
Pitch: 0.039" (1.00mm)
Termination Style: Gull Wing
Voltage Rating: 6VDC
Contact Finish: Gold
