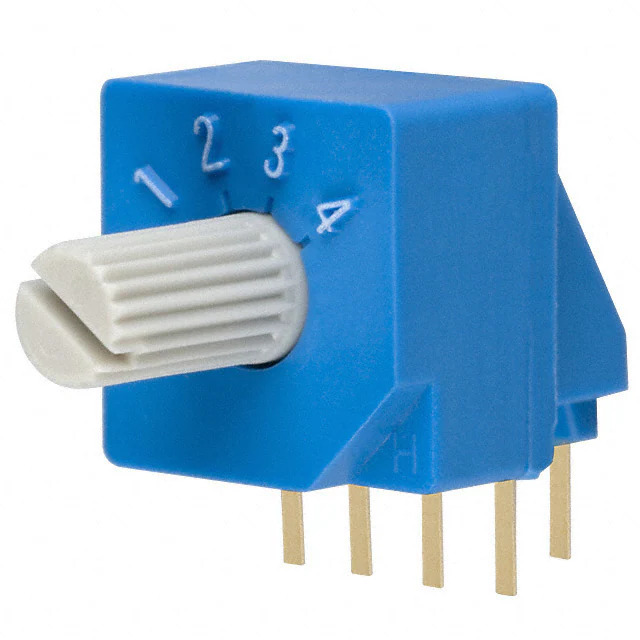

Same model may have multiple batches, images only for reference.

S-2151

Name: S-2151
Brand: Nidec Copal Electronics
SKU: 1376134
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	S-2151
Manufacturer	Nidec Copal Electronics
Catalog	DIP Switches
Description	SWITCH ROTARY DIP SP4T 100MA 5V
Datasheet	S-2151 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - DIP Switches
Mfr	Nidec Components Corporation
Series	S-2050
Package	Bulk
Product Status	Active
Circuit	SP4T
Number of Positions	4
Current Rating (Amps)	100mA
Voltage Rating	5VDC
Actuator Type	Rotary with Shaft
Actuator Level	Raised
Contact Material	Copper Alloy
Contact Finish	Gold
Height Above Board	0.394" (10.00mm)
Mounting Type	Through Hole, Right Angle
Termination Style	PC Pin
Pitch	0.100" (2.54mm), Full
Washable	Yes
Features	-
Temperature Range - Operating	-25°C ~ 70°C
Body Material	Polybutylene Terephthalate (PBT)
Length	0.394" (10.00mm)
Mechanical Life	-
Electrical Life	500 Cycles
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065
Win Source Part Number	1376134-S-2151
Ultra Librarian 3D Model	Ultra Librarian S-2151 CAD Model

Alternative Products

Description

The S-2151 is a through-hole right angle DIP switch from Nidec Components Corporation.

Series: S-2050
Current Rating: 100mA
Positions: 4
Voltage Rating: 5VDC
Circuit: SP4T
Actuator: Rotary with Shaft
Contact Finish: Gold
Contact Material: Copper Alloy
Material: Polybutylene Terephthalate (PBT)
Height Above Board: 0.394" (10.00mm)
Actuator Level: Raised
Washable: Yes
Mechanical Life: 500 cycles
Electrical Life: 500 cycles
Packaging: Bulk
Operating Temperature: -25°C to 70°C
REACH Compliant: Yes
ECCN: EAR99
