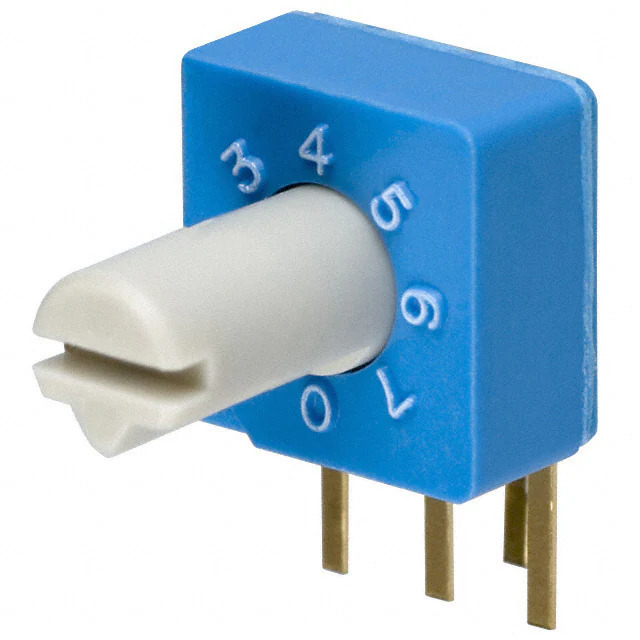

S-8111 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

S-8111

Part No S-8111
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH ROTARY DIP OCTAL 100MA 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Components Corporation
Series S-8000
Package Bulk
Product Status Active
Circuit Octal
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 5VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.283" (7.20mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features -
Temperature Range - Operating -25°C ~ 70°C
Body Material Polybutylene Terephthalate (PBT)
Length 0.283" (7.20mm)
Mechanical Life -
Electrical Life 10,000 Steps
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376119-S-8111
Ultra Librarian 3D Model Ultra Librarian S-8111 CAD Model

Description

The S-8111 is an octal rotary DIP switch manufactured by Nidec Components Corporation.

  • Current Rating: 100mA
  • Voltage Rating: 5VDC
  • Mounting: Through-Hole, Right-Angle
  • Termination Style: PC Pin
  • Positions: 8
  • Body Material: Polybutylene Terephthalate (PBT)
  • Washable: Yes
  • Electrical Life: 10,000 steps
