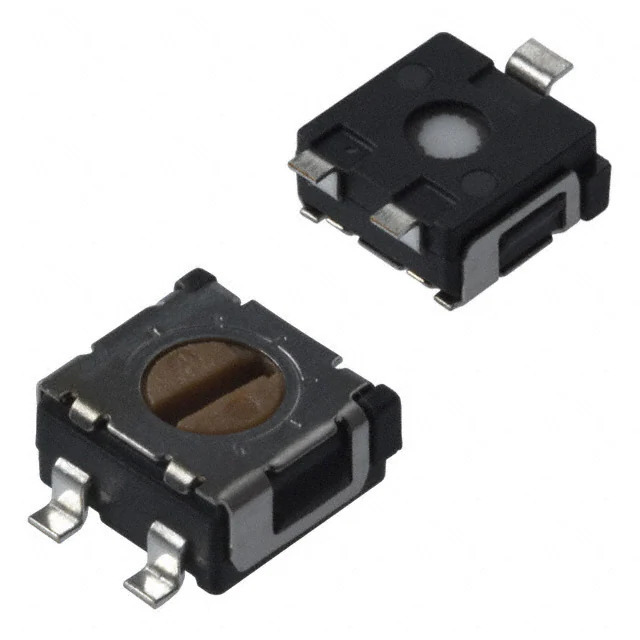

ST-4ETB501 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

ST-4ETB501

Part No ST-4ETB501
Manufacturer Nidec Copal Electronics
Catalog Trimmer Potentiometers
Description TRIMMER 500 OHM 0.25W GW TOP ADJ
Datasheet
ST-4ETB501 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Nidec Components Corporation
Series ST4
Package Tape & Reel
Product Status Active
Resistance 500 Ohms
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style Gull Wing
Size / Dimension Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm)
Base Product Number ST4ETB
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1375012-ST-4ETB501
Ultra Librarian 3D Model Ultra Librarian ST-4ETB501 CAD Model

Description

The ST-4ETB501 is a trimmer potentiometer manufactured by Nidec Components Corporation.

  • Category: Trimmer Potentiometers
  • Resistance: 500 Ohms
  • Power Rating: 0.25W (1/4W)
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Mounting Type: Surface Mount
  • Size and Dimension: 0.197" x 0.177" (5.00mm x 4.50mm)
  • Adjustment Type: Top Adjustment
  • Resistive Material: Cermet
  • Package: Tape & Reel
  • Status: Active
  • REACH: Unaffected
  • ECCN: EAR99
