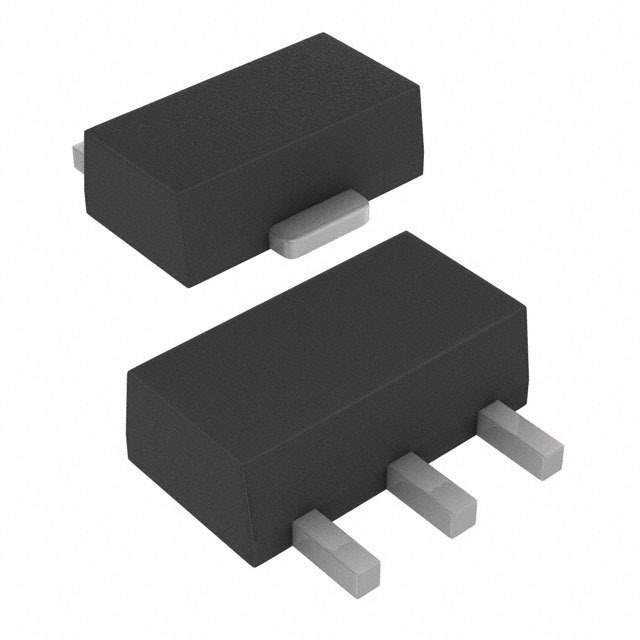

NJM78L20UA Real Image
Same model may have multiple batches, images only for reference.

NJM78L20UA

Part No NJM78L20UA
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 20V 100MA SOT89  /  Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Package Tube
Product Status Obsolete
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 40V
Voltage - Output (Min/Fixed) 20V
Current - Output 100mA
Current - Quiescent (Iq) 7 mA
PSRR 58dB (120Hz)
Protection Features Over Temperature, Short Circuit
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case TO-243AA
Supplier Device Package SOT-89
Other Names NJM78L20UA,2129-NJM78L20UA
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1244869-NJM78L20UA
Ultra Librarian 3D Model Ultra Librarian NJM78L20UA CAD Model

Description

The NJM78L20UA is an integrated circuit voltage regulator designed for fixed positive output voltage.

  • Maximum Input Voltage: 40V
  • Maximum Output Current: 100mA
  • Output Configuration: Positive
  • Output Voltage: Fixed @ 20V
  • Package: SOT-89
  • Mounting: SMD (SMT) technology
  • PSRR: 58dB (120Hz)
  • Protection: Over-temperature and short circuits
  • Operating Temperature Range: -40°C to 85°C
  • Status: Obsolete
  • RoHS Compliant: No
