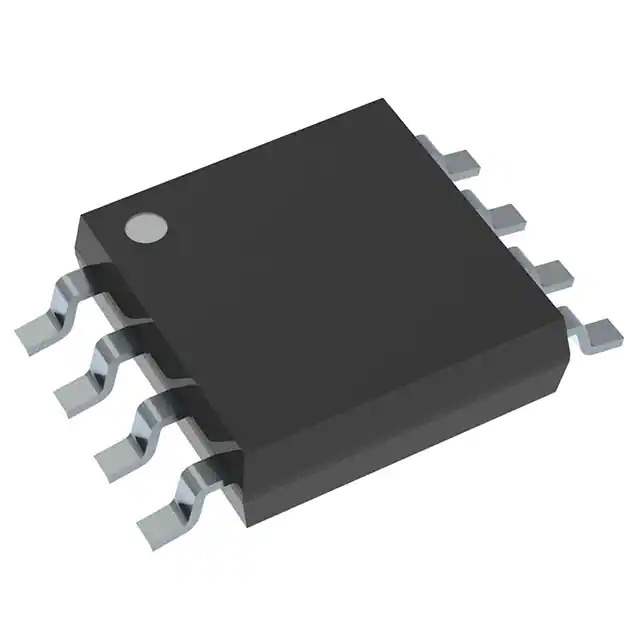

NJM2360M

Name: NJM2360M
Brand: Nisshinbo Micro Devices Inc.
SKU: 254237
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	NJM2360M
Manufacturer	Nisshinbo Micro Devices Inc.
Catalog	PMIC - Voltage Regulators - DC DC Switching Regulators
Description	IC REG DC/DC CONVERTER 8DMP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr	Nisshinbo Micro Devices Inc.
Package	Tube
Product Status	Obsolete
Function	Step-Up, Step-Down
Output Configuration	Positive or Negative
Topology	Buck, Boost
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.5V
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	1.25V
Voltage - Output (Max)	40V
Current - Output	1.5A (Switch)
Frequency - Switching	100Hz ~ 100kHz
Synchronous Rectifier	No
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.197", 5.00mm Width)
Supplier Device Package	8-DMP
Base Product Number	NJM2360
Standard Package	100 pcs
ECCN	OBSOLETE
Win Source Part Number	254237-NJM2360M
Ultra Librarian 3D Model	Ultra Librarian NJM2360M CAD Model

Alternative Products

Description

The NJM2360M is a DC-DC switching regulator integrated circuit designed for power management applications.

Configuration: step-up and step-down
Maximum Output Voltage: 40V
Current Output: 1.5A
Output Type: adjustable
Topology: buck-boost
Switching Frequency Range: 100Hz to 100kHz
Input Voltage Range: 2.5V to 40V
Mounting: surface mountable
Package: 8-SOIC
Operating Temperature: -40°C to 85°C
Status: obsolete
Manufacturer: Nisshinbo Micro Devices Inc.
