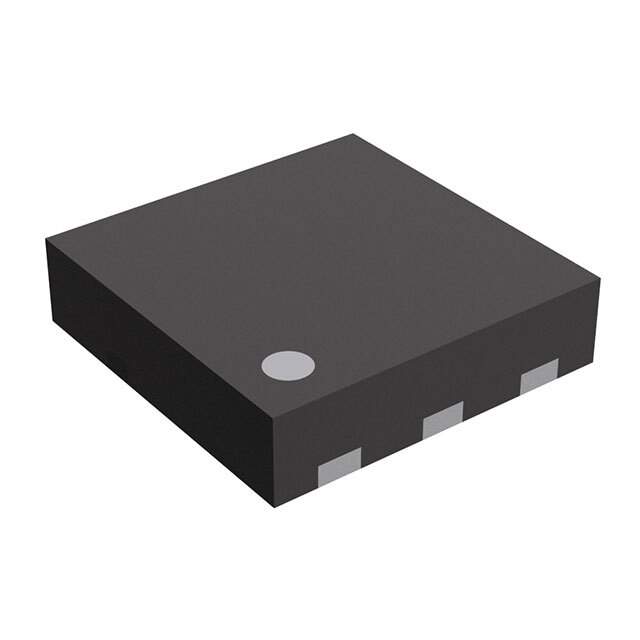

R1202L721A-TR Real Image
Same model may have multiple batches, images only for reference.

R1202L721A-TR

Part No R1202L721A-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description PWM STEP-UP DCDC CONVERTER  /  Boost Switching Regulator IC Positive Adjustable 1V 1 Output 700mA (Switch) 6-XFDFN Exposed Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Regulators
Mfr Nisshinbo Micro Devices Inc.
Series R1202x
Package Tape & Reel
Function Step-Up
Output Configuration Positive
Topology Boost
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 2.3V
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1V
Voltage - Output (Max) 23V
Current - Output 700mA (Switch)
Frequency - Switching 1.2MHz
Synchronous Rectifier No
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 6-XFDFN Exposed Pad
Supplier Device Package DFN1616-6B
Base Product Number R1202
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2129-R1202L721A-DKR,2129-R1202L721A-CT,2129-R1202L721A-TR
Standard Package 5,000
Win Source Part Number 985515-R1202L721A-TR
Ultra Librarian 3D Model Ultra Librarian R1202L721A-TR CAD Model

Description

The R1202x series from Nisshinbo Micro Devices Inc. features the 985515-R1202L721A-TR integrated circuit, a boost topology voltage regulator with an adjustable output type.

  • Mounting Type: SMD (SMT)
  • Current Output: 700mA
  • Maximum Output Voltage: 23V
  • Switching Frequency: 1.2MHz
  • Application: PMIC Voltage Regulators, DC DC Switching Regulators
  • Package: 6-XFDFN Exposed Pad
  • Temperature Range: -40°C ~ 85°C (TA)
  • Function: Step-Up
