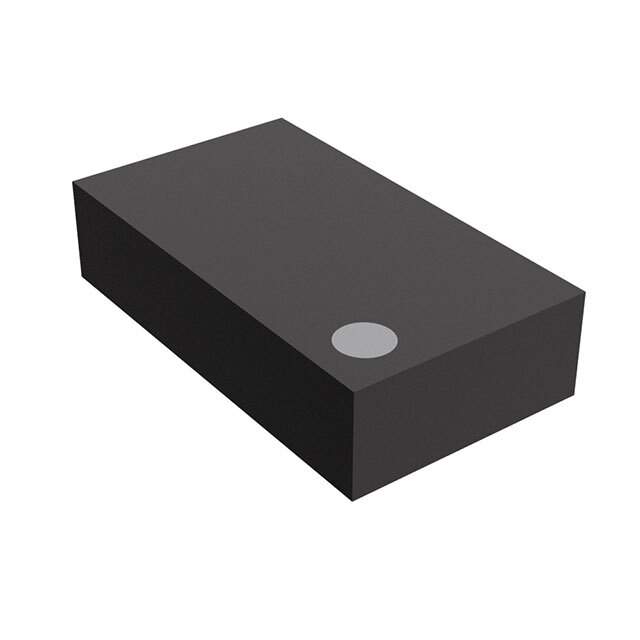

R5220K121A-TR

Name: R5220K121A-TR
Brand: Nisshinbo Micro Devices Inc.
SKU: 991711
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	R5220K121A-TR
Manufacturer	Nisshinbo Micro Devices Inc.
Catalog	PMIC - Voltage Regulators - DC DC Switching Regulators
Description	400MA PWM STEP-DOWN DCDC CONVERT / Buck Switching Regulator IC Positive Fixed 1.2V 1 Output 400mA 6-UFDFN Exposed Pad
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Regulators
Mfr	Nisshinbo Micro Devices Inc.
Series	R5220x
Package	Tape & Reel (TR)
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.8V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Current - Output	400mA
Frequency - Switching	1.2MHz
Synchronous Rectifier	Yes
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting	SMD (SMT)
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	DFN(PLP)2514-6
Base Product Number	R5220
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8542.39.0001
Standard Package	5,000
Win Source Part Number	991711-R5220K121A-TR
Ultra Librarian 3D Model	Ultra Librarian R5220K121A-TR CAD Model

Alternative Products

Description

The Nisshinbo Micro Devices Inc. R5220K121A-TR is a PMIC voltage regulator that has a fixed output type and a step-down function.

Output Type: Fixed
Function: Step-Down
Frequency Switching: 1.2MHz
Output Current: 400mA
Voltage Input: 2.8V to 5.5V
Voltage Output: 1.2V
Rectifier: Synchronous
Package: 6-UFDFN exposed pad
Temperature Range: -40°C to 85°C (TA)
ECCN: EAR99
