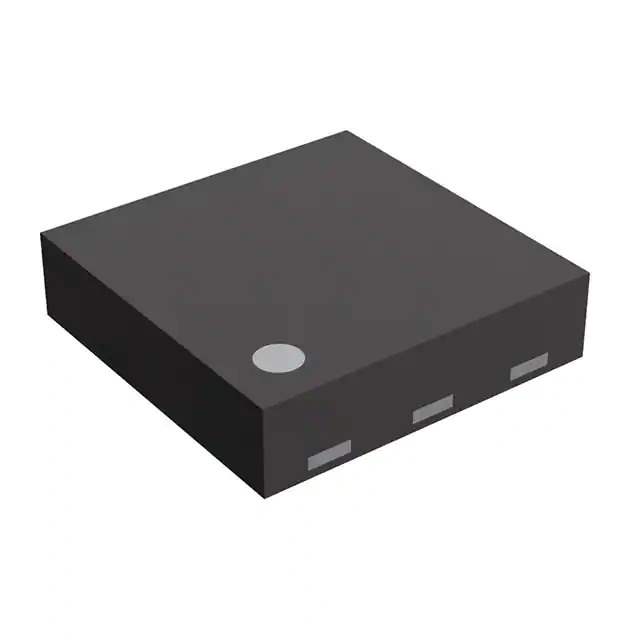

RP503L152A-TR Real Image
Same model may have multiple batches, images only for reference.

RP503L152A-TR

Part No RP503L152A-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description 600MA PWM/VFM STEP-DOWN DCDC CON
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr Nisshinbo Micro Devices Inc.
Series RP503x
Package Tape & Reel
Product Status Active
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Fixed
Number of Outputs 1
Voltage - Input (Min) 2.5V
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1.5V
Current - Output 600mA
Frequency - Switching 2MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 6-XFDFN Exposed Pad
Supplier Device Package DFN1616-6
Base Product Number RP503
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 298464-RP503L152A-TR
Ultra Librarian 3D Model Ultra Librarian RP503L152A-TR CAD Model

Description

The RP503x series is a family of DC-DC switching regulators designed for power management applications.

  • Product: RP503L152A-TR
  • Voltage Output: 1.5V
  • Maximum Output Current: 600mA
  • Input Voltage Range: 2.5V to 5.5V
  • Topology: Buck
  • Features: Synchronous Rectifier
  • Switching Frequency: 2MHz
  • Output Configuration: Positive
  • Mounting Type: Surface Mount
  • Package: 6-XFDFN exposed pad
  • Operating Temperature Range: Wide
  • Manufacturer: Nisshinbo Micro Devices Inc.
  • Product Status: Active
