Same model may have multiple batches, images only for reference.

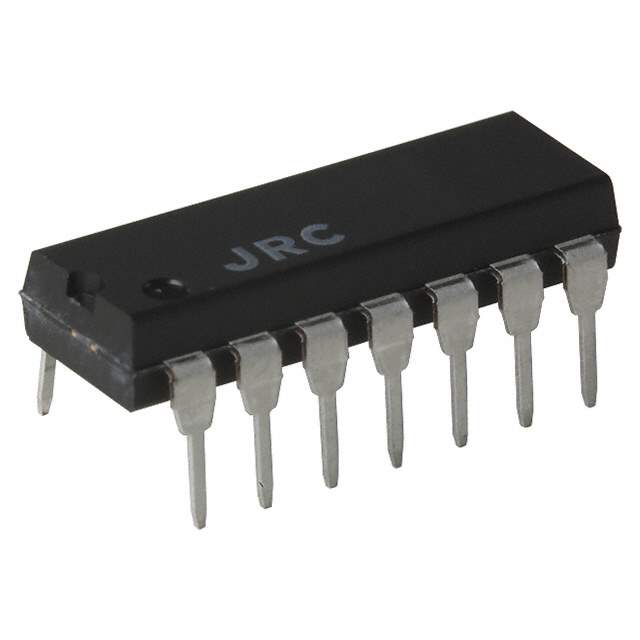

NJM2902N Real Image
Same model may have multiple batches, images only for reference.

NJM2902N

Part No NJM2902N
Manufacturer NJR Corporation/NJRC
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 500KHZ 14DIP
Datasheet
NJM2902N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NJR Corporation/NJRC
Packaging Tube/Rail
Status Active
Amplifier Type General Purpose
Number of Circuits 4
Slew Rate 0.5 V/μs
Gain Bandwidth Product (GBP) 500kHz
Current - Input Bias 20nA
Voltage - Input Offset 2mV
Operating Supply Current 1mA
Channel Output Current 40mA
Supply Voltage - Operating 3 V to 30 V, ±1.5 V to 15 V
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package 14-DIP
Win Source Part Number 060273-NJM2902N
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Consumer Electronics, Sensing & Instrumentation, Motor Drive & Control, Test & Measurement
Ultra Librarian 3D Model Ultra Librarian NJM2902N CAD Model

Description

The NJM2902N from NJR Corporation/NJRC is a quad general-purpose amplifier. It is designed for use in a wide range of applications, including consumer electronics, sensing & instrumentation, motor drive & control, and test & measurement.

  • Gain Bandwidth Product: 500kHz
  • Slew Rate: 0.5V/μs
  • Input Bias Current: 20nA
  • Input Offset Voltage: 2mV
  • Package: 14-DIP
  • Operating Temperature Range: -40°C to 85°C.
