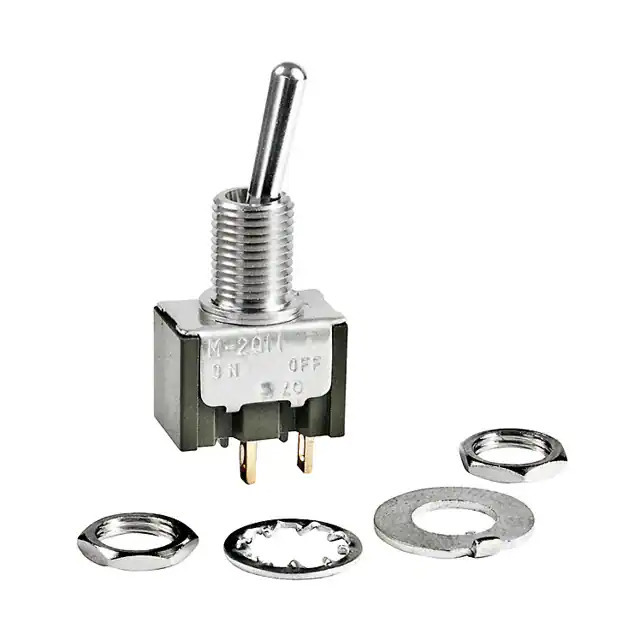

M2011SS1G01 NKK Switches
Same model may have multiple batches, images only for reference.

M2011SS1G01

Part No M2011SS1G01
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPST 0.4VA 28V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series M
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 10.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.50mm Dia
Bushing Thread 1/4-40
Ingress Protection -
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 50,000 Cycles
Base Product Number M2011SS
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375952-M2011SS1G01
Ultra Librarian 3D Model Ultra Librarian M2011SS1G01 CAD Model

Description

The M2011SS1G01 is a toggle switch from NKK Switches.

  • Mounting Type: Panel Mount
  • Panel Cutout: 6.50mm diameter, circular
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 28V (AC/DC)
  • Circuit: SPST
  • Switch Function: On-Off
  • Actuator Type: Standard Round Toggle
  • Actuator/Cap Color: Black
  • Mechanical Life: 50,000 cycles
  • Sealing: Epoxy Sealed
  • Temperature Range: -30°C to 85°C
  • Packaging: Bulk
  • REACH: Unaffected
  • ECCN: EAR99
  • Manufacturer: NKK Switches
