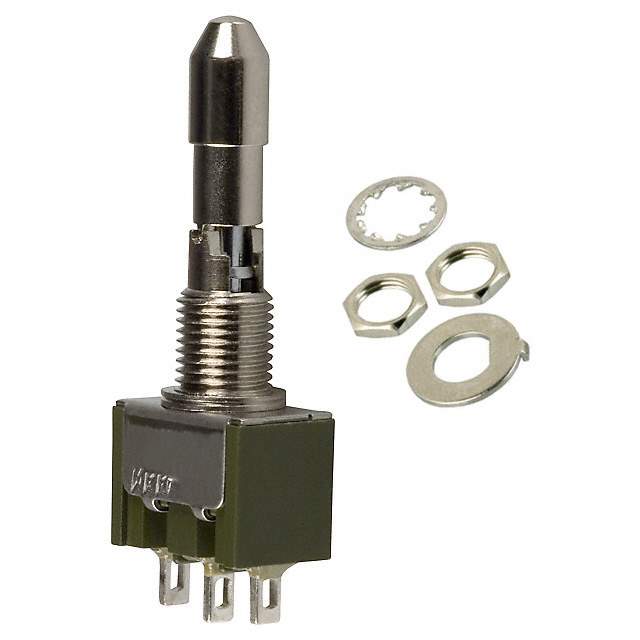

The M2012LL1W01 is a miniature toggle switch manufactured by NKK Switches. These switches are designed for a variety of applications requiring reliable and compact switching solutions. The M2012LL1W01 features a robust construction and is suitable for use in industrial, commercial, and consumer electronics.

Applications

• Instrumentation Panels
• Control Panels
• Test Equipment
• Telecommunications Equipment
• Medical Devices
• Audio Equipment
• Consumer Electronics

Features

• Miniature Size: Compact design for space-constrained applications.
• Toggle Actuation: Easy to operate toggle lever.
• SPDT Configuration: Single Pole Double Throw switch.
• High Reliability: Designed for long-term performance and durability.
• Various Terminal Options: Offers different terminal styles for flexible mounting.

Benefits

• Compact Design: Enables smaller and more compact electronic devices.
• Easy Operation: Toggle lever provides simple and intuitive control.
• Reliable Switching: Ensures consistent and dependable switching performance.
• Versatile Applications: Suitable for a wide range of electronic devices and systems.

Technical Specifications

Key specifications of the M2012LL1W01 typically include:

• Switch Function: SPDT (Single Pole Double Throw)
• Contact Rating: Consult the datasheet for specific voltage and current ratings (e.g., 0.4VA @ 28V DC)
• Terminal Type: Consult the datasheet for the available terminal options (e.g., solder lug, PC terminals)
• Actuation Force: Consult the datasheet for the actuation force required to switch the lever.
• Operating Temperature Range: Typically -30°C to +85°C.
• Mechanical Life: Specified number of cycles (e.g., 50,000 cycles).
