Same model may have multiple batches, images only for reference.

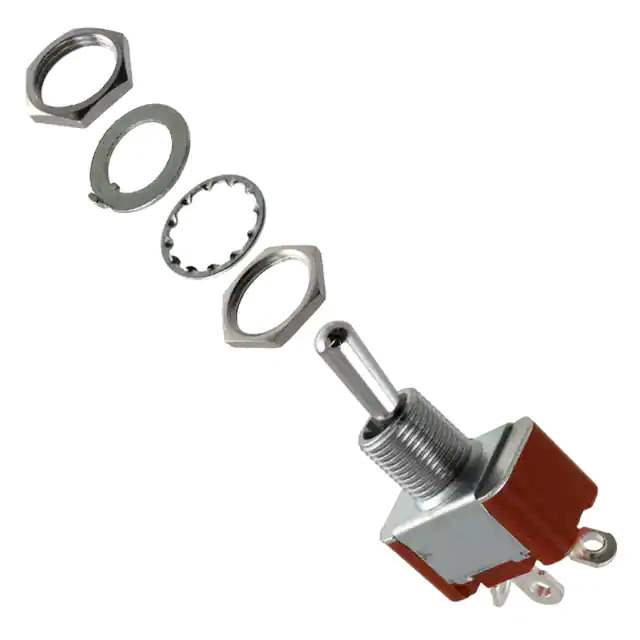

S303 Real Image
Same model may have multiple batches, images only for reference.

S303

Part No S303
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 15A 125V / Toggle Switch SPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series S300
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 15A (AC), 20A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Temperature Range - Operating -10°C ~ 70°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 662671-S303
Ultra Librarian 3D Model Ultra Librarian S303 CAD Model

Description

The S300 series toggle switch is a high-quality switch designed for various applications.

  • Voltage Rating: 125 V AC and 30 V DC
  • Circuit Configuration: SPDT
  • Switch Function: On-off-on
  • Actuator: Standard round actuator made of brass and chrome plated
  • Panel Cutout Diameter: 12.50mm
  • Temperature Range: -10°C to 70°C
  • Manufacturer: NKK Switches
