Same model may have multiple batches, images only for reference.

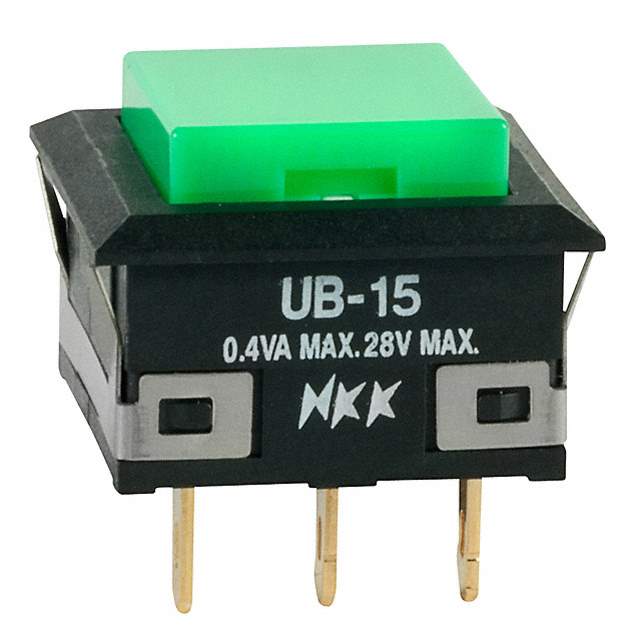

UB15KKG01N-F Real Image
Same model may have multiple batches, images only for reference.

UB15KKG01N-F

Part No UB15KKG01N-F
Manufacturer NKK Switches
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 28V  /  Pushbutton Switch SPDT Standard Panel Mount, Snap-In
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr NKK Switches
Series UB
Package Bulk
Mounting Type Panel Mount, Snap-In
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Green
Termination Style Solder Lug
Features Overtravel, Tactile Feedback
Panel Cutout Dimensions Square - 16.20mm x 16.20mm
Temperature Range - Operating -20°C ~ 70°C
Mechanical Life 1,000,000 Cycles
Electrical Life 200,000 Cycles
Base Product Number UB15KKG
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 360-2589,UB15KKG01N-F-ND,UB15KKG01NF
Standard Package 1
Win Source Part Number 1230252-UB15KKG01N-F
Ultra Librarian 3D Model Ultra Librarian UB15KKG01N-F CAD Model

Description

The UB15KKG01N-F is a pushbutton switch manufactured by NKK Switches.

  • Switch Type: Pushbutton
  • Switch Style: Standard
  • Actuator Shape: Square, Button
  • Actuator Color: Green
  • Actuator Marking: None
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 28V (AC/DC)
  • Panel Cutout Dimension: Square - 16.20mm x 16.20mm
