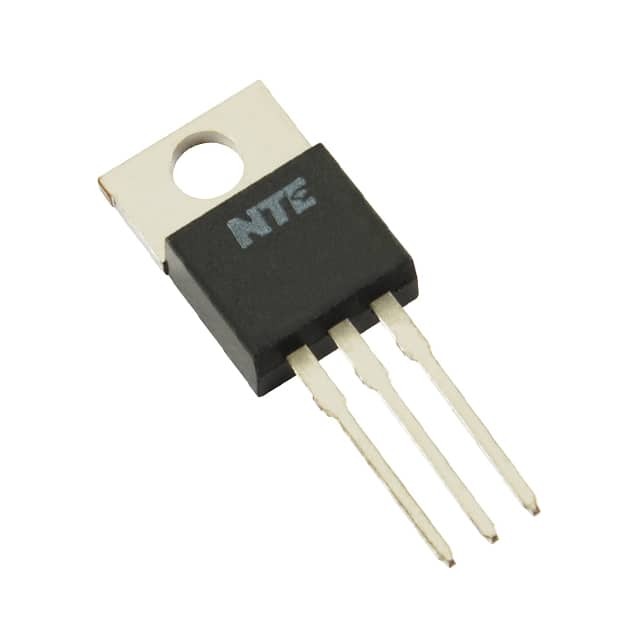

NTE5609
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - TRIACs
Mfr NTE
Package Bag
Product Status Active
Triac Type Logic - Sensitive Gate
Voltage - Off State 600 V
Current - On State (It (RMS)) (Max) 8 A
Voltage - Gate Trigger (Vgt) (Max) 1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm) 80A @ 60Hz
Current - Gate Trigger (Igt) (Max) 10 mA
Current - Hold (Ih) (Max) 50 mA
Configuration Single
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220
Standard Package 1 pcs
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 887765-NTE5609
Ultra Librarian 3D Model Ultra Librarian NTE5609 CAD Model

Description

The NTE5609 is a logic-sensitive gate TRIAC designed for AC switching and phase control applications.

  • Off-State Voltage: 600 V
  • Gate Trigger Voltage (Vgt): 1.3 V
  • On-State Current (It (RMS)): 8 A
  • Non-Repetitive Surge Current: 80A @ 60Hz
  • Gate Trigger Current (Igt): 10 mA
  • Holding Current (Ih): 50 mA
  • Package: TO-220
  • Mounting: Through-hole
  • Operating Temperature: -40°C to 125°C
  • Status: Active
  • Manufacturer: NTE
