The 74ALVCH16841DGG118 is a high-performance, low-voltage 20-bit bus interface latch designed by NXP Semiconductors. This product is part of the Advanced Low-Voltage CMOS High-Speed (ALVCH) family, which is renowned for its robustness and compatibility with mixed-voltage system environments.

Key Features

• Technology: Manufactured using advanced CMOS technology, the 74ALVCH16841DGG118 provides a perfect balance between speed and power consumption.
• Voltage Range: It operates at a nominal supply voltage of 3.3V, which makes it suitable for interfacing with 3.3V logic levels while also being 5V tolerant to facilitate mixed-voltage applications.
• Bus Interface: The device features a 20-bit wide latch with dual enable functions, allowing for efficient data flow management in complex electronic systems.
• High-Speed Operation: With its high-speed capabilities, it is optimized for operating frequencies up to several hundred MHz, providing the necessary speed for high-performance computing and data processing tasks.
• Low Power Dissipation: The 74ALVCH16841DGG118 is designed with power conservation in mind, featuring reduced power dissipation compared to equivalent bipolar devices.

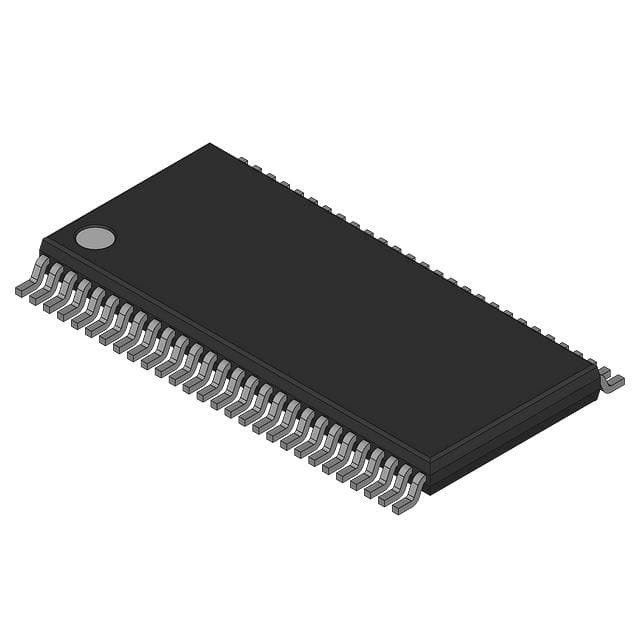

• Package: It is housed in a DGG118 package, which is a surface-mount, thin shrink small outline package that is both space-saving and suitable for automated assembly processes.

Applications

The device is versatile and can be used in a wide range of applications, including:

• Bus interface or signal buffering for microprocessor or microcontroller-based systems.
• Communication systems where data integrity and high-speed data transfer are crucial.
• Computer motherboards and memory modules requiring stable and reliable data latching.
• Industrial control systems that demand robust performance in challenging environments.

Quality and Reliability

NXP Semiconductors is committed to delivering high-quality products. The 74ALVCH16841DGG118 has undergone rigorous testing and quality control measures to ensure it meets the industry standards for reliability and performance.
