Product Overview: 74ALVT162827DGG from NXP

The 74ALVT162827DGG, manufactured by NXP Semiconductors, is a high-performance, non-inverting 20-bit buffer/line driver designed to deliver the ultimate balance between speed and power consumption. This integrated circuit is part of NXP's Advanced Low-Voltage CMOS Technology (ALVT) series, which is renowned for its low-voltage operation and high-speed interfacing capability.

Key Features

• High-Speed Performance: The 74ALVT162827DGG operates at a frequency of up to 250 MHz, making it an ideal choice for high-speed data transmission and processing applications.
• Low-Voltage Operation: It is optimized for 2.5V to 3.3V VCC operation, minimizing power consumption while maintaining signal integrity.
• 20-Bit Interface: The device features a wide 20-bit bus interface, which is suitable for wide data paths or bus extension applications.
• 3-State Outputs: The outputs are 3-state, which allows for connection to multiple devices on a bus without interference.
• High Drive Capability: With 24 mA LVTTL outputs, it can drive multiple loads simultaneously, ensuring robust signal transmission.
• Bus-Hold Data Inputs: The bus-hold feature on data inputs eliminates the need for external pull-up or pull-down resistors, simplifying board design and reducing component count.

Applications

The 74ALVT162827DGG is suitable for a wide range of applications that require high-speed data transfer and buffering, including:

• Memory address driving
• Data switching and routing
• Backplane driving
• Bus interfacing in servers and telecommunications
• Peripheral expansion in computers and industrial systems

Package Information

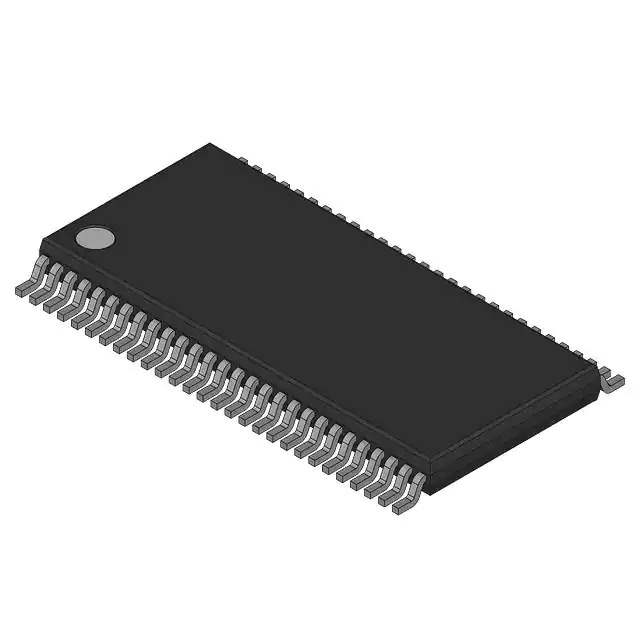

The device is housed in a 56-pin TSSOP (Thin Shrink Small Outline Package) type package, under the orderable part number 74ALVT162827DGG. This compact form factor is ideal for space-constrained applications while offering excellent thermal performance.

Quality and Reliability

As with all NXP products, the 74ALVT162827DGG is manufactured to the highest quality standards, ensuring reliable performance in even the most demanding environments. The device is compliant with JEDEC standards and is RoHS compliant, reflecting NXP's commitment to environmental sustainability.
