Product Overview: 74HC3G07GD,125 by NXP Semiconductors

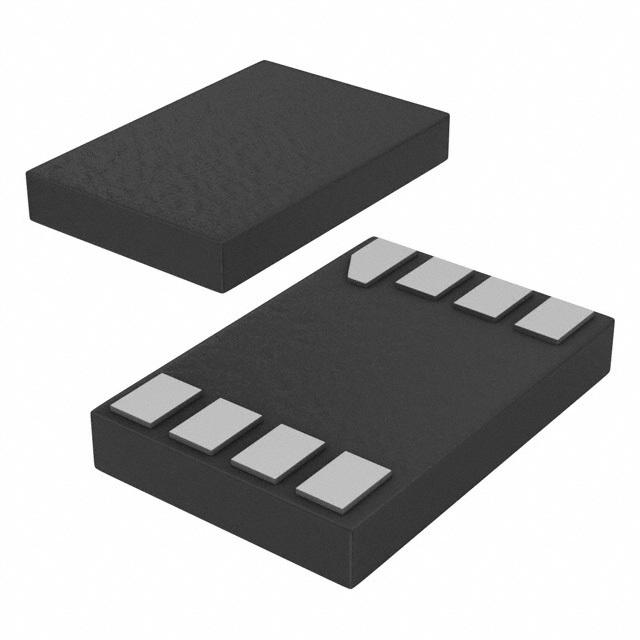

The 74HC3G07GD,125 is a high-speed Si-gate CMOS device from NXP Semiconductors, designed to deliver the functionality of triple buffers with open-drain outputs. This integrated circuit is part of the 74HC family, which is well-known for its robust performance and compatibility with TTL (Transistor-Transistor Logic). The product is packaged in an 8-pin XSON8 package, which is both compact and efficient for space-sensitive applications.

Key Features:

• Logic Type: Triple Buffer with Open-Drain Outputs
• Package: 8-pin XSON8, offering a small footprint suitable for space-constrained applications.
• Operating Voltage: Ranges from 2 V to 6 V, making it versatile for various logic level requirements.
• Output Capability: High-current open-drain for driving heavy loads.
• Temperature Range: Designed to operate within a -40 °C to +125 °C temperature range, ensuring reliability across diverse operating conditions.
• Compatibility: TTL compatible input levels.

Applications:

The 74HC3G07GD,125 is suitable for a wide range of applications, including but not limited to:

• Level shifting circuits where signal inversion is not a concern.
• Driving LEDs, relays, or other high-current devices.
• Interfacing with bus lines in bus-oriented systems due to its open-drain configuration.
• Logic buffering with the capability to sink current.

Quality and Reliability:

NXP Semiconductors is known for its commitment to quality and the 74HC3G07GD,125 is no exception. It is fabricated using state-of-the-art technology for the highest reliability and performance. The device meets stringent industry standards, ensuring a reliable solution for both commercial and industrial applications.

Ordering and Packaging:

The 74HC3G07GD,125 comes in tape and reel packaging, facilitating easy integration into automated PCB assembly processes. This packaging method also provides protection to the devices during transport and storage. When ordering, the suffix '125' denotes the quantity of the components in the reel.
