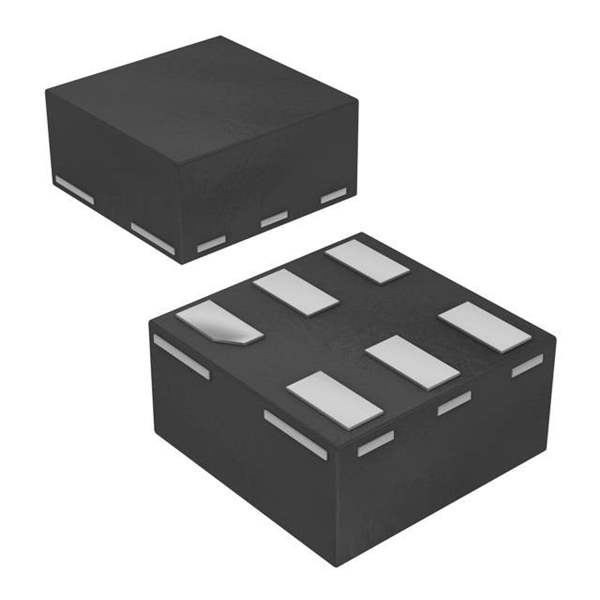

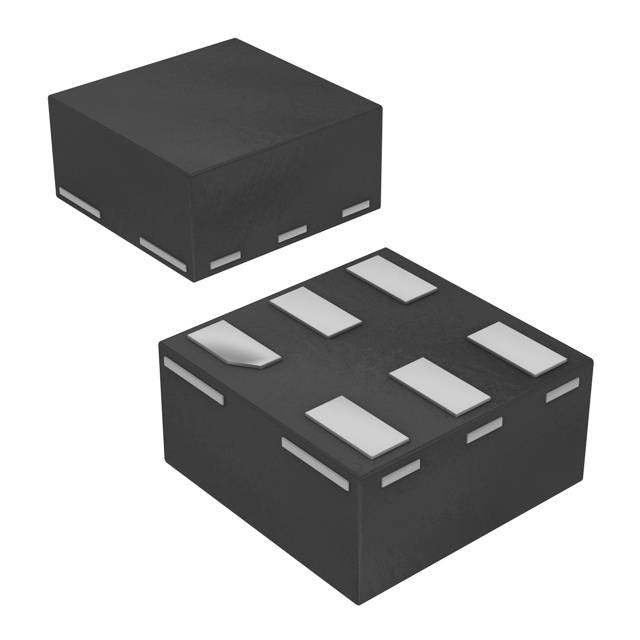

Product Overview: 74LVC1G08GF,132

The 74LVC1G08GF,132 is a high-performance, single 2-input AND gate integrated circuit (IC) from NXP Semiconductors, designed for use in a wide range of applications requiring logic operations. This IC is part of the 74LVC family, which is well-known for its low-voltage operation and compatibility with TTL (Transistor-Transistor Logic) levels.

Key Features

• Logic Type: 2-input AND gate
• Supply Voltage Range: 1.65V to 5.5V, allowing for use in both 3.3V and 5V systems.
• High-Speed Operation: With a typical propagation delay of only 3.7ns at a 3.3V supply, it ensures fast response times for critical applications.
• Low Power Consumption: Its low power consumption makes it ideal for battery-operated and power-sensitive devices.
• Output Drive Capability: Can drive up to 50mA at the output, allowing it to control LEDs or other low-power devices directly.
• Input Compatibility: The inputs are 5V tolerant, enabling interface with TTL logic levels without the need for additional level shifting.
• ESD Protection: Features robust Electrostatic Discharge (ESD) protection, ensuring reliability and longevity even in harsh environments.
• Package: Comes in a space-saving XSON6 package, making it suitable for compact PCB layouts.

Applications

The versatile nature of the 74LVC1G08GF,132 makes it suitable for various applications, including but not limited to:

• Logic function implementation in microcontroller-based systems
• Signal gating and processing in communication devices
• Power management circuits
• Control logic in consumer electronics
• Interface circuitry in mixed-voltage systems

Quality and Reliability

NXP Semiconductors is known for its commitment to quality, and the 74LVC1G08GF,132 is no exception. It is produced with high manufacturing standards, ensuring reliable performance for the end-user. With its robust design and protective features, this AND gate IC is an excellent choice for designers looking for a dependable logic solution.

Summary

In summary, the 74LVC1G08GF,132 from NXP is a compact, high-speed, low-power 2-input AND gate that offers a wide supply voltage range, compatibility with TTL levels, and ESD protection. Its small footprint and low power consumption make it an ideal choice for a multitude of applications requiring reliable logic operations.
