Product Overview: 74LVC1G126GW by NXP Semiconductors

The 74LVC1G126GW is a high-performance, single-buffer gate with a 3-state output from NXP Semiconductors, designed to operate from 1.65V to 5.5V. This feature enables the device to interface with a wide range of other devices, operating at various voltage levels, making it particularly suitable for mixed-voltage applications. The device is part of the LVC family, which stands for Low-Voltage CMOS, signifying that it is optimized for low-power and low-voltage operation while maintaining high-speed interfacing.

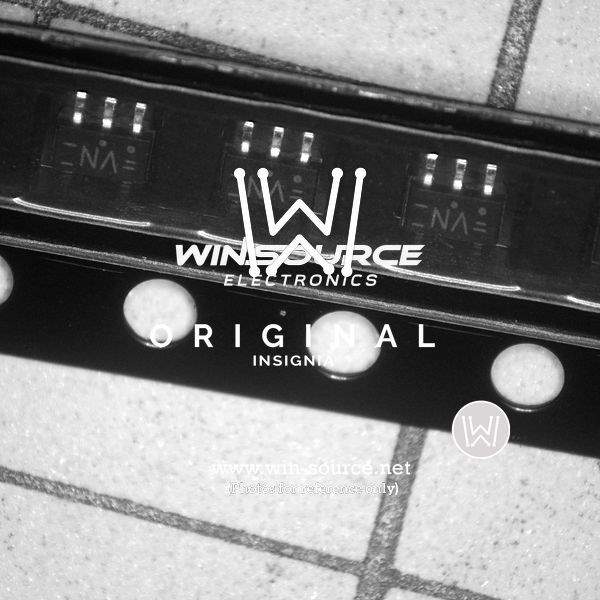

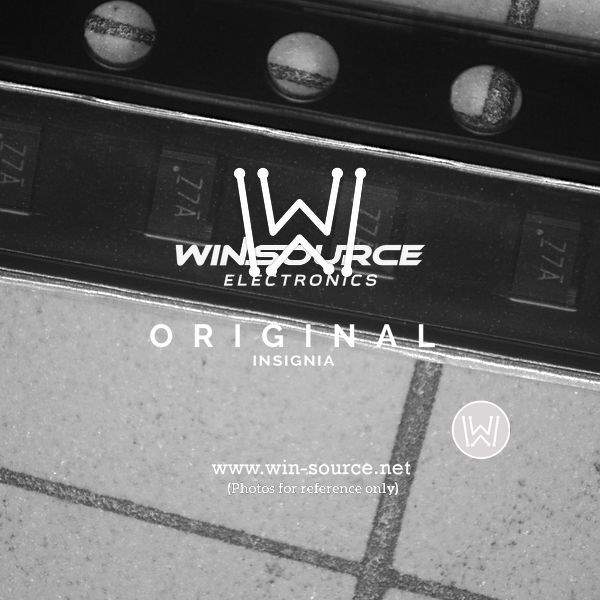

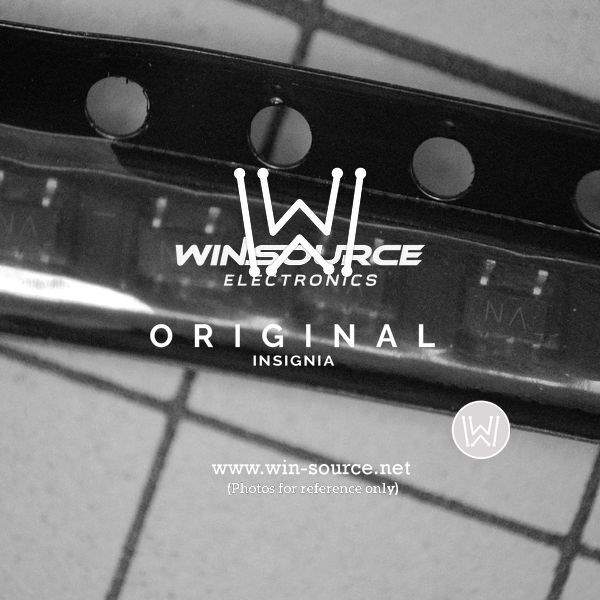

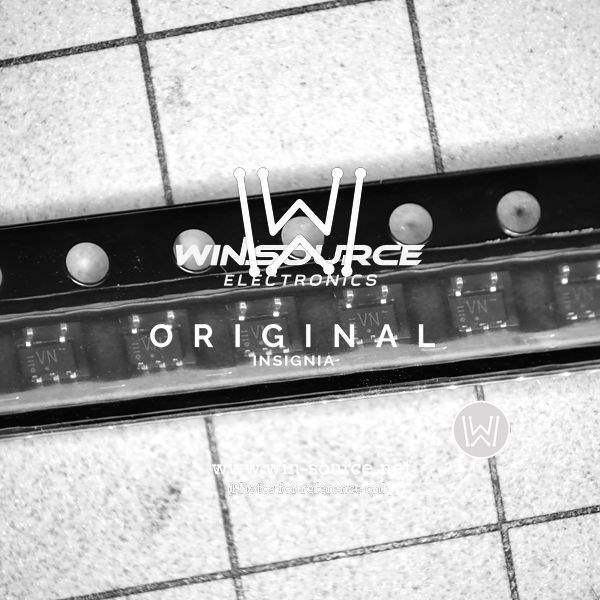

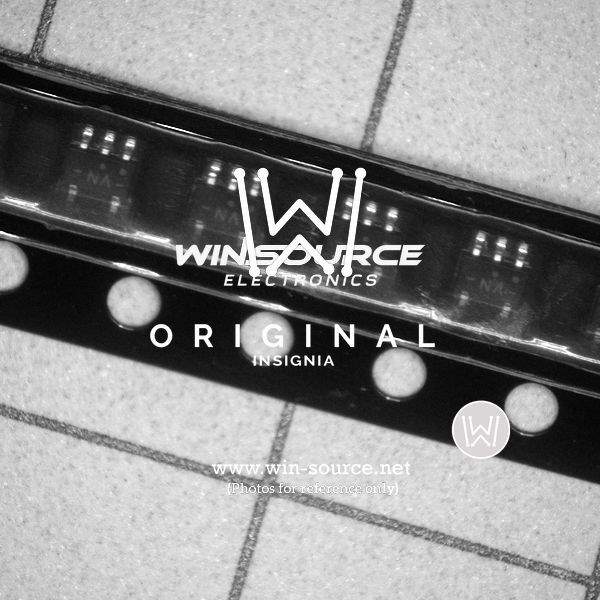

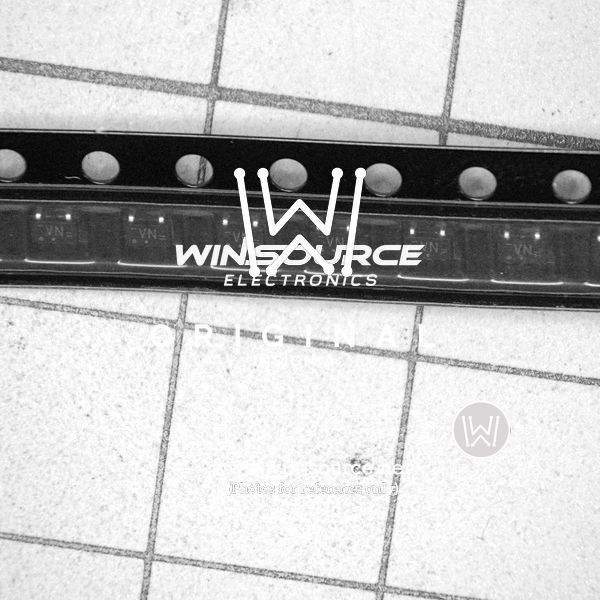

Encased in a compact SOT-353 (SC-88A) surface-mount package, the 74LVC1G126GW is engineered to provide a high-drive output with up to 50 mA of drive current. This output drive capability, along with the low static power consumption, makes it an excellent choice for use in battery-powered, portable devices where power efficiency is crucial. Moreover, the device's 3-state output feature allows for the connection of multiple outputs to a common bus, without the risk of damaging conflicts, thus facilitating bus-oriented applications.

The input of the 74LVC1G126GW is Schmitt-triggered, which enhances the device's performance in environments with noisy signals by providing a hysteresis that increases noise immunity and allows for slow input transition rates. This makes it highly suitable for interfacing with mechanical switches or other input devices prone to generating noisy signals.

Additionally, the device boasts an impressive propagation delay, ensuring fast response times in critical applications. It is also characterized by its low input capacitance, further contributing to its swift operation. The 74LVC1G126GW is compatible with TTL levels, ensuring ease of integration into existing systems that utilize TTL logic without requiring additional level-shifting hardware.

With its wide operating voltage range, high drive capability, low-power consumption, and compatibility with multiple logic levels, the 74LVC1G126GW from NXP Semiconductors is an ideal choice for a broad array of applications, including but not limited to, bus drivers, memory address drivers, clock drivers, and buffer circuits in computers, communication devices, and consumer electronics.
