Product Overview: 74LVC2244ABQ by NXP Semiconductors

The 74LVC2244ABQ is a high-performance, octal buffer and line driver designed to ensure that multiple signals can be transmitted with high fidelity in a variety of digital applications. Manufactured by NXP Semiconductors, a leader in the industry, this integrated circuit is part of the LVC family, which is known for its low-voltage operation and compatibility with mixed-voltage system environments.

This device features eight non-inverting buffers and line drivers with 3-state outputs, which makes it ideal for driving bus lines or buffer memory address registers. The 3-state outputs are controlled by an output enable (OE) input for each pair of buffers, which allows for greater flexibility in the management of data flow within a system.

Key Features

• Wide Supply Voltage Range: The 74LVC2244ABQ operates at a supply voltage range of 1.2V to 3.6V, which is suitable for low-voltage applications and is compatible with TTL levels.
• High-Speed Operation: With a propagation delay of just a few nanoseconds, this device ensures high-speed data transfer, which is critical in modern digital systems.
• Low Power Consumption: The low power consumption of this IC makes it suitable for battery-operated and power-sensitive applications.
• 5V Tolerant Inputs: Inputs can handle 5V signals without damage, which allows for interfacing with 5V logic levels without the need for additional level shifters.
• ESD Protection: The device includes protection against electrostatic discharge, enhancing its robustness for use in physically demanding environments.

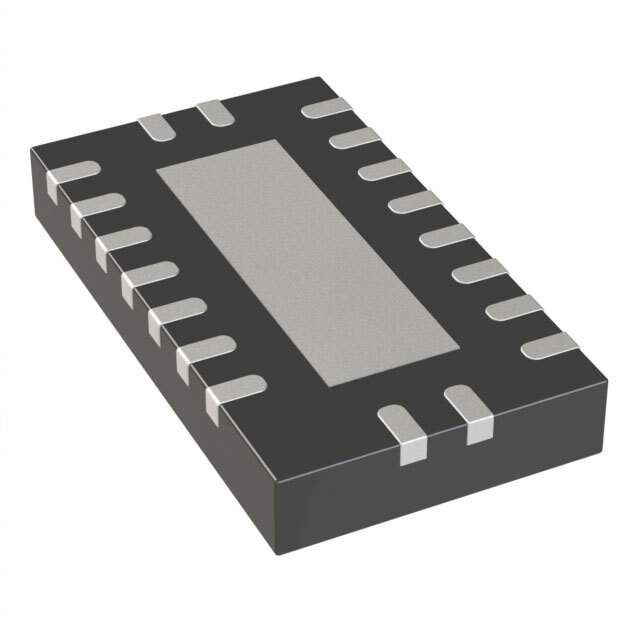

• Multiple Package Options: The 74LVC2244ABQ is available in a DHVQFN20 package, which is compact and suitable for space-constrained applications.

Applications

The versatility of the 74LVC2244ABQ makes it a prime choice for a wide range of applications, including:

• Bus driver interfaces
• Memory buffering
• Data transmission systems
• Microprocessor or microcontroller interfacing
• Portable electronics

With its strong feature set and reliable performance, the 74LVC2244ABQ from NXP Semiconductors is an excellent choice for designers looking for a robust, low-voltage interface solution for their digital systems.
