Product Overview: 74LVC595ABQ,115

The 74LVC595ABQ,115 is a high-performance, 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs from NXP Semiconductors. This integrated circuit (IC) is part of NXP's LVC (Low-Voltage CMOS) family, designed to operate at a lower power and with a higher speed interface capability. It is particularly suitable for systems requiring high-density integration at low voltages ranging from 1.2V to 3.6V.

Key Features

• Low Voltage Operation: Operates from a 1.2V to 3.6V supply, making it ideal for battery-operated and portable applications where power efficiency is crucial.
• High-Speed Performance: Offers a propagation delay of only 3.7ns at 3.3V, ensuring high-speed data processing for critical applications.
• 8-bit Serial or Parallel Output: Provides versatility in output modes, allowing designers to choose between serial or parallel data output depending on the system requirements.
• Output Drive Capability: Capable of driving 5V tolerant inputs, which allows for a mixed-voltage mode operation and interfacing with higher voltage logic levels without damage.
• Shift Register and Storage Register: Features a shift register and a D-type storage register with separate clocks, enabling flexible control over data input and output.
• 3-state Outputs: Includes 3-state outputs that can be placed in a high-impedance state, effectively disconnecting the output from the circuit, which is useful for bus-oriented applications.

Applications

The 74LVC595ABQ,115 is widely used in a variety of digital applications, including:

• Microprocessor expansion
• Data acquisition systems
• LED displays
• Communication systems
• Instrumentation
• Automotive systems

Package and Quality

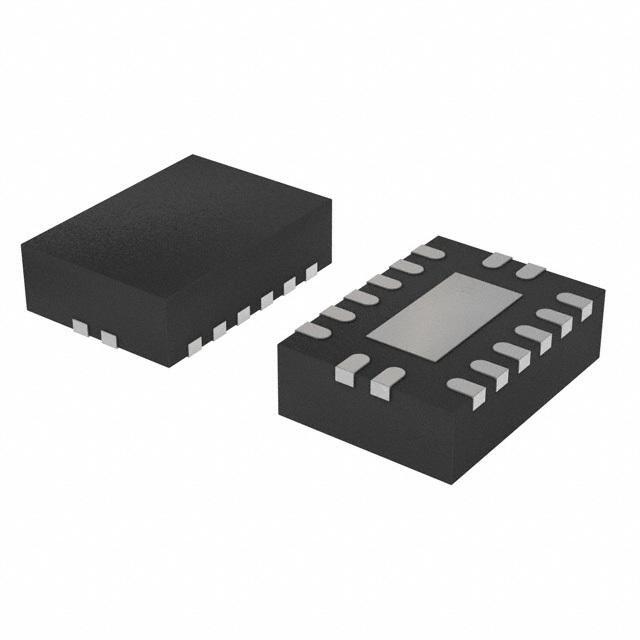

The device is available in a DHVQFN16 package, which is a small, leadless and plastic package with 16 terminals. This compact form factor is ideal for space-constrained applications. The product is also compliant with the stringent requirements of the Joint Electron Device Engineering Council (JEDEC) standard, ensuring reliability and high quality for electronic systems.

In summary, the 74LVC595ABQ,115 from NXP is a versatile, high-speed shift register that offers low-voltage operation and robust performance for a wide range of digital applications. Its advanced features and small package size make it an excellent choice for designers looking to optimize their system's performance and power efficiency.
