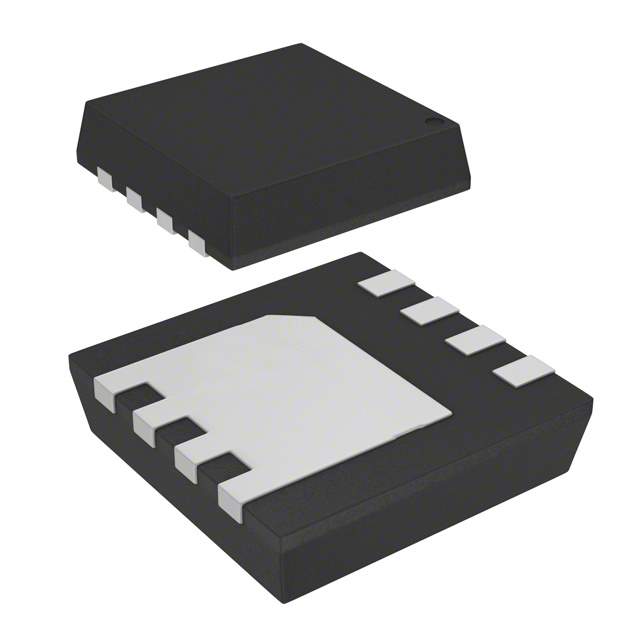

AON7440 Real Image
Same model may have multiple batches, images only for reference.

AON7440

Part No AON7440
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH / 30V N-Channel MOSFET
Datasheet
AON7440 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 28A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 2.3V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 75nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 2820pF @ 15V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 4.2W (Ta), 42W (Tc)
Rds On (Maximum) @ Id, Vgs 2.8 mOhm @ 20A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package 8-DFN-EP (3.3x3.3)
Package 8-PowerWDFN
Win Source Part Number 768562-AON7440
Popularity Medium
Supply and Demand Status Balance
Family Name AON7440
Introduction Date August 06, 2014
Country of Origin China
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AON7440 CAD Model

Description

The Alpha & Omega Semiconductor AON7440 is a MOSFET transistor that is used in various applications. It has the following specifications:

  • Continuous Drain Current: 28A (Ta), 50A (Tc)
  • Maximum Power Dissipation: 4.2W (Ta), 42W (Tc)
  • Operating Temperature Range: -55°C ~ 150°C (TJ)
  • Package: 8-PowerWDFN
  • Family: AON7440
  • Product Category: Discrete Semiconductor Products
  • Drain-Source Voltage: 30V
  • Gate-Source Threshold Voltage: 2.3V @ 250μA
  • Gate Charge: 75nC @ 10V
  • Input Capacitance: 2820pF @ 15V
  • Status: Obsolete (EOL)
  • Estimated EOL Date: Unknown
  • Country of Origin: China
