The BAP63LX from NXP Semiconductors is a high-performance, silicon PIN diode designed for a wide range of applications. This device is particularly suited for RF switching and attenuating functions due to its excellent high-frequency characteristics. It is a versatile component that can be used in both professional and consumer electronics, making it a valuable addition to any RF signal chain.

Key Features

• High-Speed Switching: The BAP63LX offers fast switching speeds, making it ideal for high-frequency applications where rapid signal modulation is required.
• Low Series Resistance: With its low series resistance, the diode ensures minimal signal loss, thus maintaining the integrity of the transmitted or received signals.
• Low Capacitance: The device features low junction capacitance, which contributes to its excellent high-frequency performance by reducing signal distortion.
• High Power Handling: Capable of handling high levels of power, the BAP63LX is suitable for applications where robustness and reliability are crucial.

Applications

The BAP63LX is well-suited for a variety of applications, including:

• RF switch matrices
• Antenna switching
• Attenuators
• Phase shifters
• Wireless communication systems

Technical Specifications

The BAP63LX boasts impressive technical specifications that make it a top contender in its class:

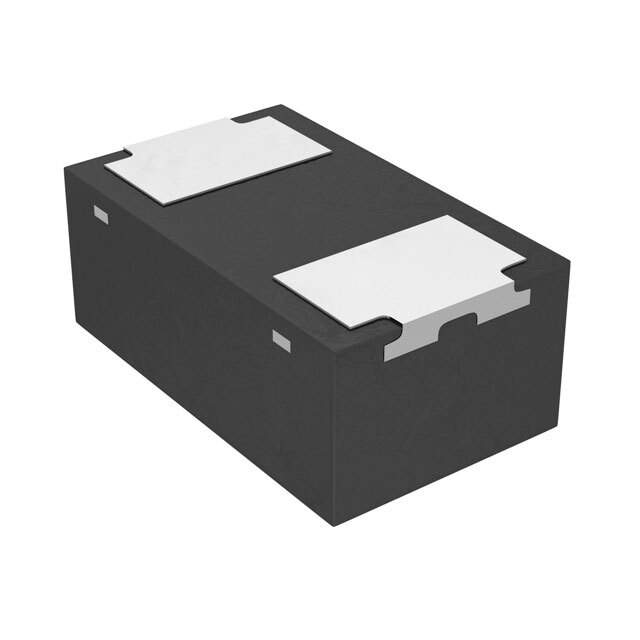

• Package: SOD-882 leadless
• Configuration: Single
• Breakdown Voltage: 30 V (minimum)
• Resistance @ IF: 1.2 Ohm (maximum)
• Total Capacitance @ VR: 0.15 pF (typical)

Quality and Reliability

NXP Semiconductors is known for its commitment to quality, and the BAP63LX is no exception. It is manufactured to meet the highest industry standards, ensuring reliability and performance in even the most demanding environments. Whether you are developing cutting-edge RF technology or looking for a reliable component for existing systems, the BAP63LX is an excellent choice.
