Product Overview: NXP BCP52-16

The NXP BCP52-16 is a robust PNP bipolar transistor designed to meet the needs of a wide range of electronic applications. This high-performance component is part of NXP's comprehensive portfolio of transistors, which are renowned for their reliability and efficiency. The BCP52-16 is particularly suitable for linear amplification and switching applications.

Key Features

• High Current Capability: The BCP52-16 can handle continuous collector currents up to -1.5 A, making it suitable for moderate to high-power applications.
• Low Voltage Operation: With a collector-emitter voltage (VCEO) of -80 V, it can be used effectively in low voltage circuits, providing flexibility in design.
• Medium Power Dissipation: This transistor has a power dissipation of 1.25 W, which allows it to handle a reasonable amount of power without overheating.
• High Gain Bandwidth Product: Featuring a transition frequency (fT) of 100 MHz, the BCP52-16 is capable of amplifying signals with excellent speed and responsiveness.

Applications

The BCP52-16 is versatile and can be used in various applications, including:

• Driver stages in audio amplifiers
• Control circuits in power management
• Signal amplification for embedded systems
• Switching operations in power supplies
• Load switches in consumer electronics

Quality and Reliability

NXP's commitment to quality ensures that the BCP52-16 meets the highest standards of performance and reliability. This transistor is built to provide stable operation over its entire temperature range, ensuring consistent performance in a variety of environmental conditions.

Package and Mounting

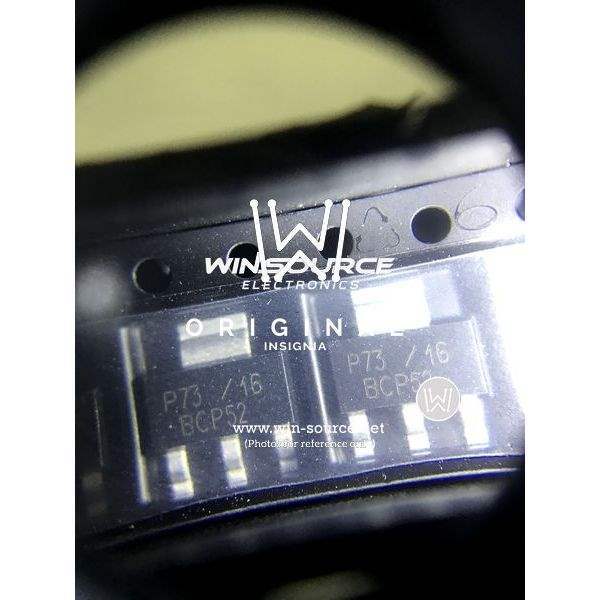

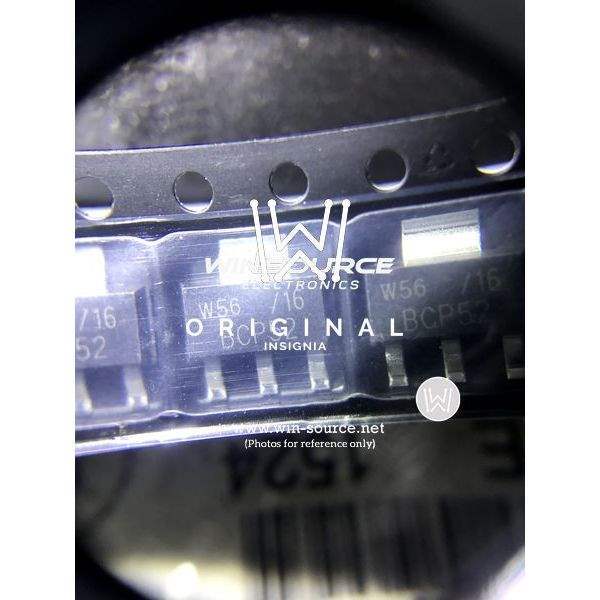

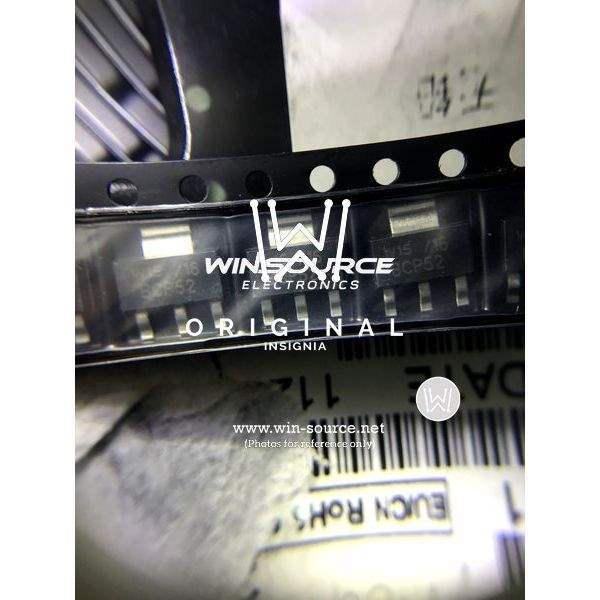

The BCP52-16 comes in a SOT-223 surface-mount package, which is ideal for automated assembly processes. Its compact form factor makes it suitable for use in space-constrained applications while providing excellent power handling and thermal performance.

Environmental Compliance

Adhering to NXP's dedication to environmental sustainability, the BCP52-16 is compliant with RoHS regulations, ensuring that it is free from harmful substances and suitable for use in eco-friendly products.
