The BFU760F,115 by NXP Semiconductors is a state-of-the-art RF bipolar junction transistor designed for high-performance applications. This advanced NPN wideband silicon germanium transistor is tailored for high-frequency operations, making it an ideal choice for a variety of RF signal amplification tasks.

Key Features

• Frequency Range: The BFU760F,115 operates effectively over a wide frequency range, making it suitable for a variety of RF applications, including but not limited to mobile communications, satellite receivers, and GPS systems.
• Low Noise Figure: With a low noise figure, this transistor ensures excellent signal integrity, which is critical for high-quality audio, video, and data transmission.
• High Gain: The product boasts high gain levels, providing strong amplification of RF signals without significant distortion, ensuring clear and reliable communication.

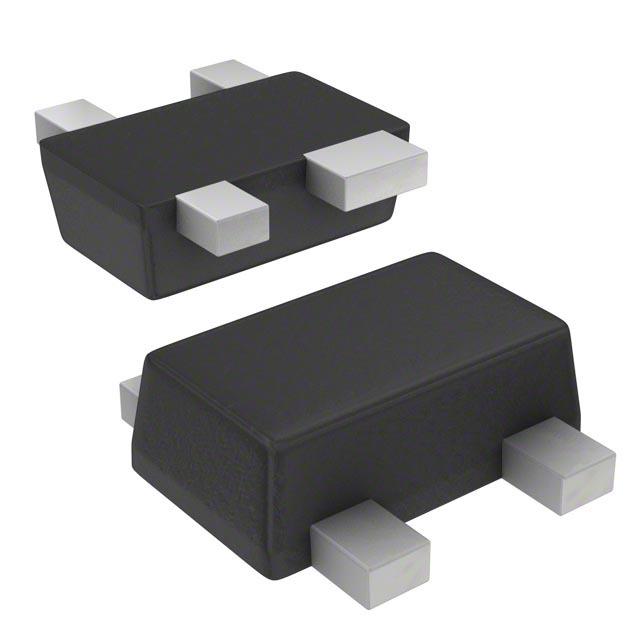

• Surface-Mount Package: It comes in a 4-pin, ultra-small plastic surface-mounted package (SOT343F), which is designed to optimize board space and is suitable for automated assembly processes.

Applications

The versatility of the BFU760F,115 makes it well-suited for a broad range of applications. These include, but are not limited to:

• Low-noise amplifiers in cellular and cordless phones
• RF front-end amplifiers in GPS receivers
• IF and RF amplification in wideband communication systems
• Oscillator applications in microwave systems

Technical Specifications

Some of the key technical specifications of the BFU760F,115 include:

• Transition frequency (fT) of 47 GHz, ensuring suitability for high-frequency applications.
• Collector-emitter voltage (Vceo) of 2.2 V, providing a good balance between performance and power consumption.
• Collector current (Ic) of 23 mA, allowing for robust operation without excessive power draw.

Conclusion

In summary, the BFU760F,115 from NXP Semiconductors is a high-performance, wideband silicon germanium RF transistor that offers excellent gain, low noise, and a high transition frequency. Its small form factor and high reliability make it an excellent choice for designers looking to create sophisticated RF amplification solutions in compact, power-sensitive applications.
