Products specifications

Categories Discrete Semiconductor Products
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Avalanche
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 850mA
Voltage - Forward (Vf) (Max) @ If 980mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 25ns
Current - Reverse Leakage @ Vr 1μA @ 200V
Capacitance @ Vr, F 50pF @ 0V, 1MHz
Mounting SMD (SMT)

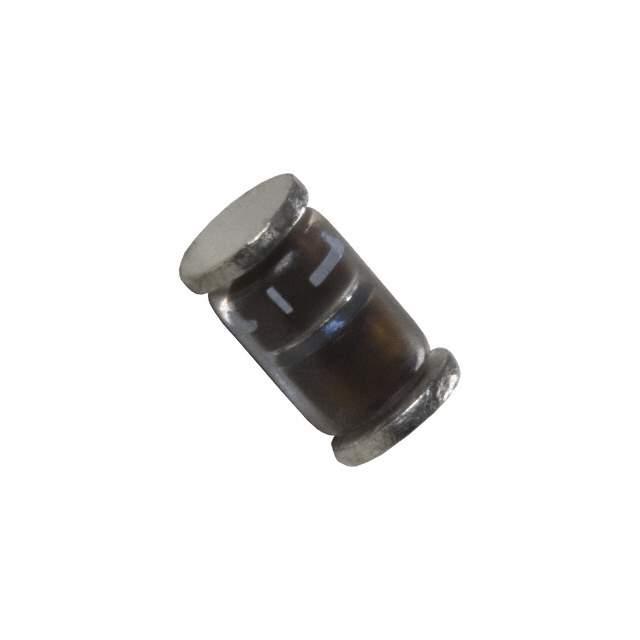

Case / Package MELF
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 092802-BYD77D
Family Name BYD77D
Introduction Date December 01, 1991
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BYD77D CAD Model

Description

The NXP BYD77D is a high-performance, fast soft-recovery controlled avalanche rectifier designed for use in switching power supplies, inverters, and as free-wheeling diodes. Its robust design and superior electrical characteristics make it an ideal choice for applications requiring efficient and reliable power conversion.

Key Features

  • Low Forward Voltage Drop: The BYD77D boasts a low forward voltage drop, which enhances overall efficiency by minimizing power loss during conduction.
  • Fast Switching Speed: With its fast switching capabilities, the BYD77D ensures that power supplies can switch more rapidly, improving performance and reducing electromagnetic interference (EMI).
  • Controlled Avalanche Rating: The device is engineered to handle sudden high energy pulses, making it suitable for rugged environments and applications where voltage spikes may occur.
  • Soft Recovery Characteristics: The soft recovery feature of the BYD77D minimizes switching noise and reduces stress on the device, enhancing its longevity and reliability.
  • High Thermal Stability: Its high thermal stability ensures consistent performance over a wide temperature range, making it reliable in various operating conditions.

Applications

The NXP BYD77D is versatile and can be used in a variety of applications, including:

  • Switch-mode power supplies (SMPS)
  • High-frequency DC/DC converters
  • Energy storage systems
  • Uninterruptible power supplies (UPS)
  • Automotive applications requiring high reliability

Technical Specifications

Parameter Value Repetitive Peak Reverse Voltage (V<sub>RRM) 200 V Average Forward Current (I<sub>F(AV)) 1 A Non-Repetitive Peak Forward Surge Current (I<sub>FSM) 30 A Operating Junction Temperature Range (T<sub>j) -65 to +175 °C

Quality and Reliability

NXP is committed to delivering products with the highest standards of quality and reliability. The BYD77D is no exception, undergoing rigorous testing to ensure it meets the stringent requirements for industrial and automotive grade components.
