Product Overview: NXP HEF4001BT

The NXP HEF4001BT is a robust, high-quality integrated circuit (IC) that belongs to the family of CMOS (Complementary Metal Oxide Semiconductor) logic devices. This IC is a quad 2-input NOR gate, which is a fundamental building block in digital electronics. The HEF4001BT is designed to operate over a broad voltage range and is characterized by low power consumption, making it suitable for a wide variety of electronic applications.

Key Features

• Logic Type: The device features four independent 2-input NOR gates, which are used to implement logical operations in digital circuits.
• Supply Voltage Range: It operates over a wide supply voltage range from 3V to 15V, accommodating various application requirements and ensuring compatibility with both TTL (Transistor-Transistor Logic) and CMOS logic levels.
• Low Power Consumption: As a CMOS device, it boasts low power dissipation, which is crucial for battery-powered and energy-efficient designs.
• High Noise Immunity: The HEF4001BT is designed with a high noise immunity, making it stable and reliable in electrically noisy environments.
• Output Drive Capability: It has the capability to drive multiple outputs, providing flexibility in interfacing with other components within a circuit.

Applications

The versatility of the NXP HEF4001BT allows it to be used in a wide array of applications, including but not limited to:

• Logic circuitry and binary arithmetic operations
• Control systems and automation
• Signal processing
• Alarm systems and security devices
• Timing circuits and oscillators

Technical Specifications

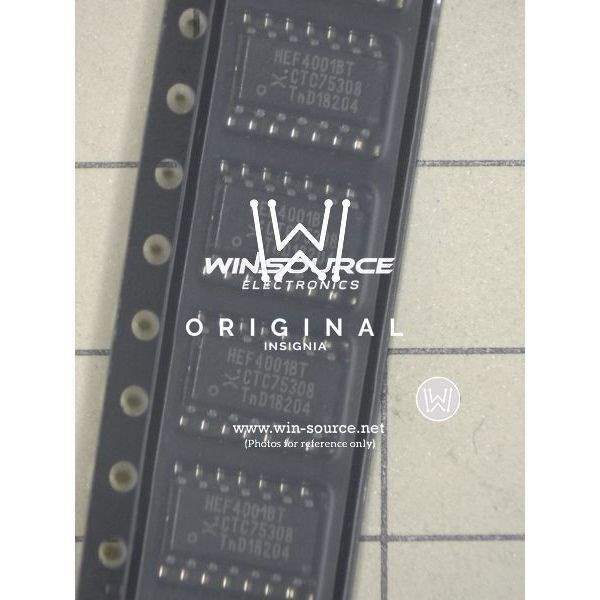

With a standard 14-pin SOIC package, the HEF4001BT is easy to integrate into various circuit designs. Its technical specifications include a typical propagation delay of 15ns, ensuring swift response times in critical applications. The IC also features a wide operating temperature range from -40°C to +125°C, which allows for deployment in harsh environmental conditions.

In summary, the NXP HEF4001BT is a reliable and efficient solution for designers looking to implement NOR gate logic functions in their electronic projects. Its low power consumption, high noise immunity, and wide operating voltage range make it a versatile choice for both commercial and industrial applications.
