The IP4283CZ10-TBA is a high-performance, low-capacitance ESD protection device from NXP Semiconductors, designed to safeguard high-speed data lines from electrostatic discharge (ESD) damage. This robust component is particularly well-suited for applications that require protection for sensitive circuitry without compromising signal integrity.

Key Features

• ESD Protection: Offers exceptional ESD protection exceeding IEC 61000-4-2 level 4 standards, withstanding ESD strikes up to 8 kV (contact discharge) and 15 kV (air discharge).
• Low Capacitance: The device features ultra-low line capacitance, typically around 0.7 pF, making it ideal for protecting high-speed data lines without distorting signal quality.
• Multiple Channels: Contains ten ESD protection diodes in a single package, providing a compact solution for multiple data lines.
• Bidirectional Clamping: Bidirectional transient voltage suppression ensures protection for both positive and negative transients.
• Low Leakage Current: Exhibits low leakage current, which enhances the energy efficiency of the overall system.

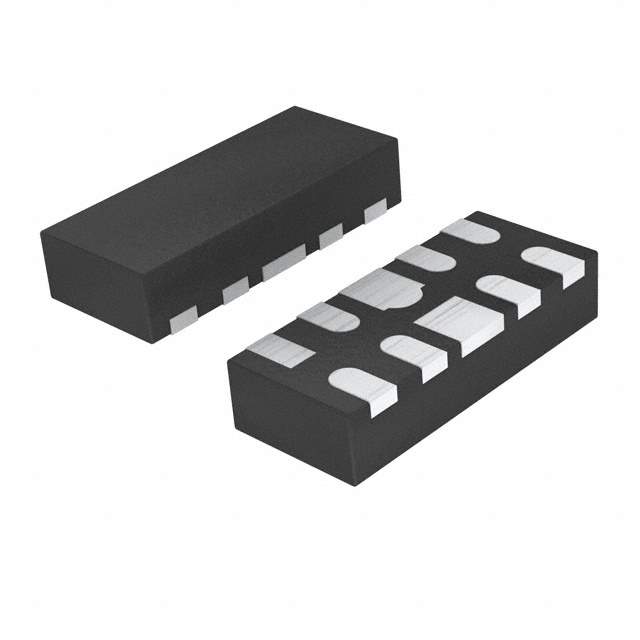

• Small Package: Housed in a small leadless package (DFN2510-10), it minimizes PCB space requirements and is compatible with standard PCB assembly processes.

Applications

The IP4283CZ10-TBA is versatile and can be used in a variety of applications where data line protection is critical. Some common applications include:

• USB 2.0 and 3.0 interfaces
• HDMI and DisplayPort interfaces
• Digital Visual Interface (DVI) applications
• Mobile and computing devices
• Consumer electronics

Conclusion

In summary, the IP4283CZ10-TBA from NXP is a cutting-edge solution for protecting sensitive electronics from the potentially damaging effects of ESD. Its low capacitance, high-level ESD protection, and compact form factor make it an excellent choice for designers looking to enhance the reliability and longevity of their high-speed digital interfaces.
