Product Overview: IP4284CZ10-TBR from NXP Semiconductors

The IP4284CZ10-TBR is a cutting-edge ESD protection device from the reputable NXP Semiconductors, designed to safeguard high-speed interfaces such as USB 2.0, HDMI, and other vulnerable circuits from the detrimental effects of Electrostatic Discharge (ESD). This component is a must-have for modern electronics where data integrity and system reliability are paramount.

Key Features

• High Integration: The IP4284CZ10-TBR incorporates ten ESD protection diodes in a single package, providing a compact solution for multiple lines of protection.
• Low Capacitance: With ultra-low line capacitance, this device ensures high-speed signal integrity, making it ideal for protecting interfaces like USB 2.0 that operate at high frequencies.
• Robust Protection: It offers robust ESD protection up to 8 kV contact discharge as per the IEC 61000-4-2 standard, ensuring devices withstand common electrostatic occurrences.
• Low Clamping Voltage: The device features a low clamping voltage, ensuring that sensitive components are shielded from transient over-voltages during ESD events.

Applications

The IP4284CZ10-TBR is versatile and can be used in a wide range of applications, including:

• Mobile Devices
• Computers and Peripherals
• Digital Cameras
• Portable Electronics
• Set-Top Boxes

Package and Quality

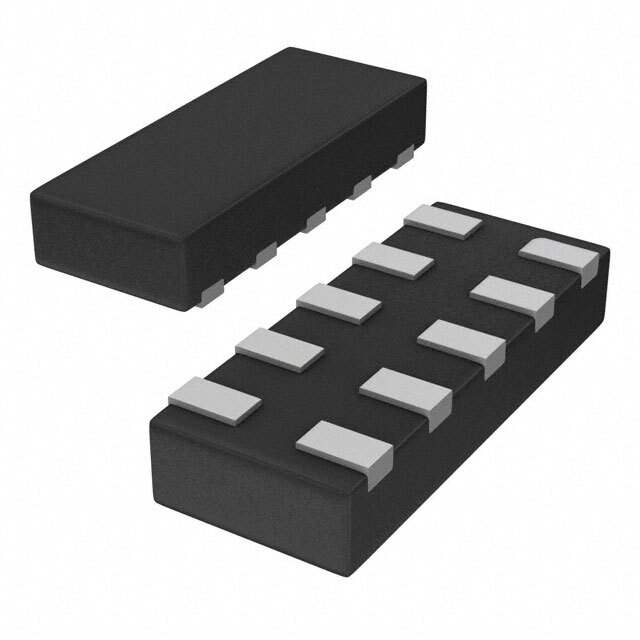

This ESD protection device is offered in a leadless, ultra-small DFN2510A-10 (SOT1176) surface-mount package, which not only saves space but also enables efficient PCB layout. The IP4284CZ10-TBR is designed to meet the stringent quality standards of NXP Semiconductors, ensuring high reliability and performance.

Conclusion

With its high level of protection, low capacitance, and small form factor, the IP4284CZ10-TBR from NXP Semiconductors stands out as an excellent choice for designers looking to enhance the ESD resilience of their high-speed data interfaces. By choosing this device, manufacturers can ensure their products are robust, reliable, and ready for the demands of the modern electronic environment.
