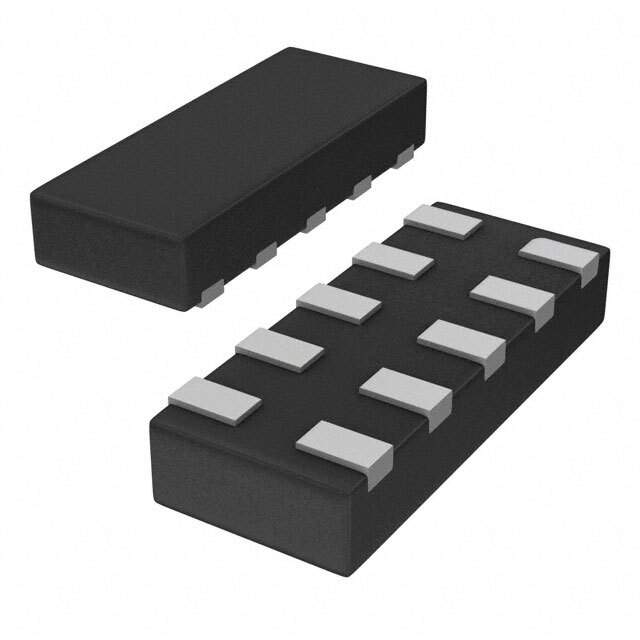

The IP4294CZ10-TBR is a cutting-edge ESD protection device from NXP Semiconductors, designed to safeguard high-speed interfaces such as USB 2.0, HDMI, and other data lines from electrostatic discharge (ESD) and other voltage-induced transients. This compact and efficient solution is housed in a small 10-lead UDFN package, making it an ideal choice for space-constrained applications.

Key Features

• High ESD Protection: The IP4294CZ10-TBR offers robust ESD protection up to ±15 kV air and ±8 kV contact discharge as per the IEC 61000-4-2 standard, ensuring the safety of your electronic components during unexpected voltage spikes.
• Low Capacitance Design: With ultra-low line capacitance, this device ensures signal integrity for high-speed data lines without compromising on protection capabilities.
• Integrated Zener Diodes: The integrated Zener diodes provide voltage clamping during transient events, effectively shunting excess voltage away from sensitive circuitry.
• Low Leakage Current: The device's low leakage current minimizes power loss, making it suitable for battery-powered applications where power efficiency is critical.

Applications

The IP4294CZ10-TBR is versatile and can be used across a wide range of applications, including:

• Mobile Phones and Smart Devices
• Personal Computers and Laptops
• Digital Cameras and Portable Media Players
• Networking and Telecommunication Equipment
• Set-Top Boxes and Digital TVs

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and reliability, and the IP4294CZ10-TBR is no exception. It is manufactured using state-of-the-art processes and subjected to rigorous testing to ensure it meets the highest standards. Customers can trust this ESD protection device to provide long-term, reliable performance in their electronic products.
